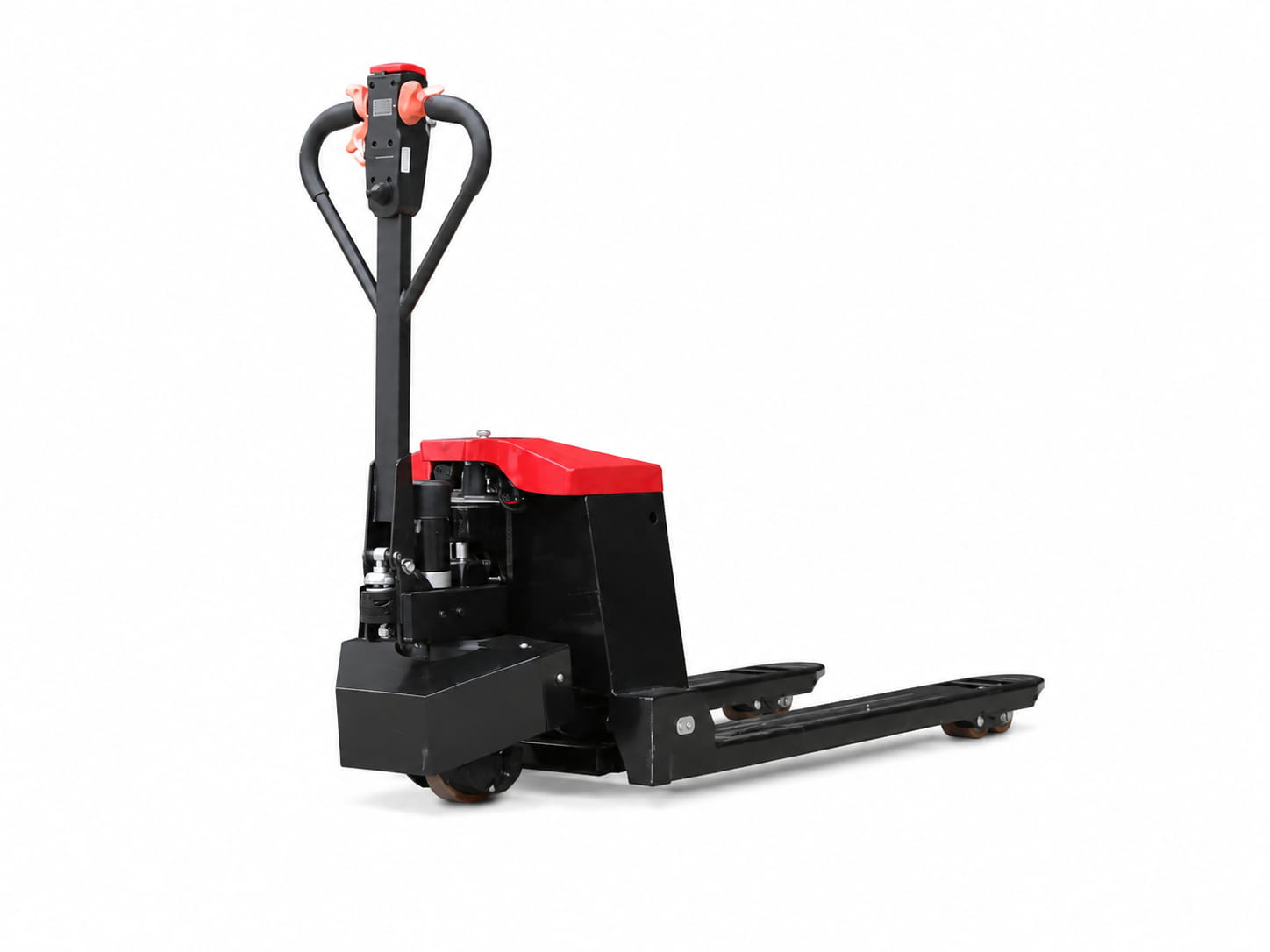

Compact Structure
For Daily Pallet Handling
This walk-behind electric pallet truck features a compact body, practical fork structure and stable drive unit. It is suitable for warehouse transfer, workshop movement and routine pallet handling, helping improve daily operating efficiency.
- Compact body for flexible movement
- Suitable for warehouse and workshop use
- Stable structure for daily pallet transport
- Practical design for routine handling tasks

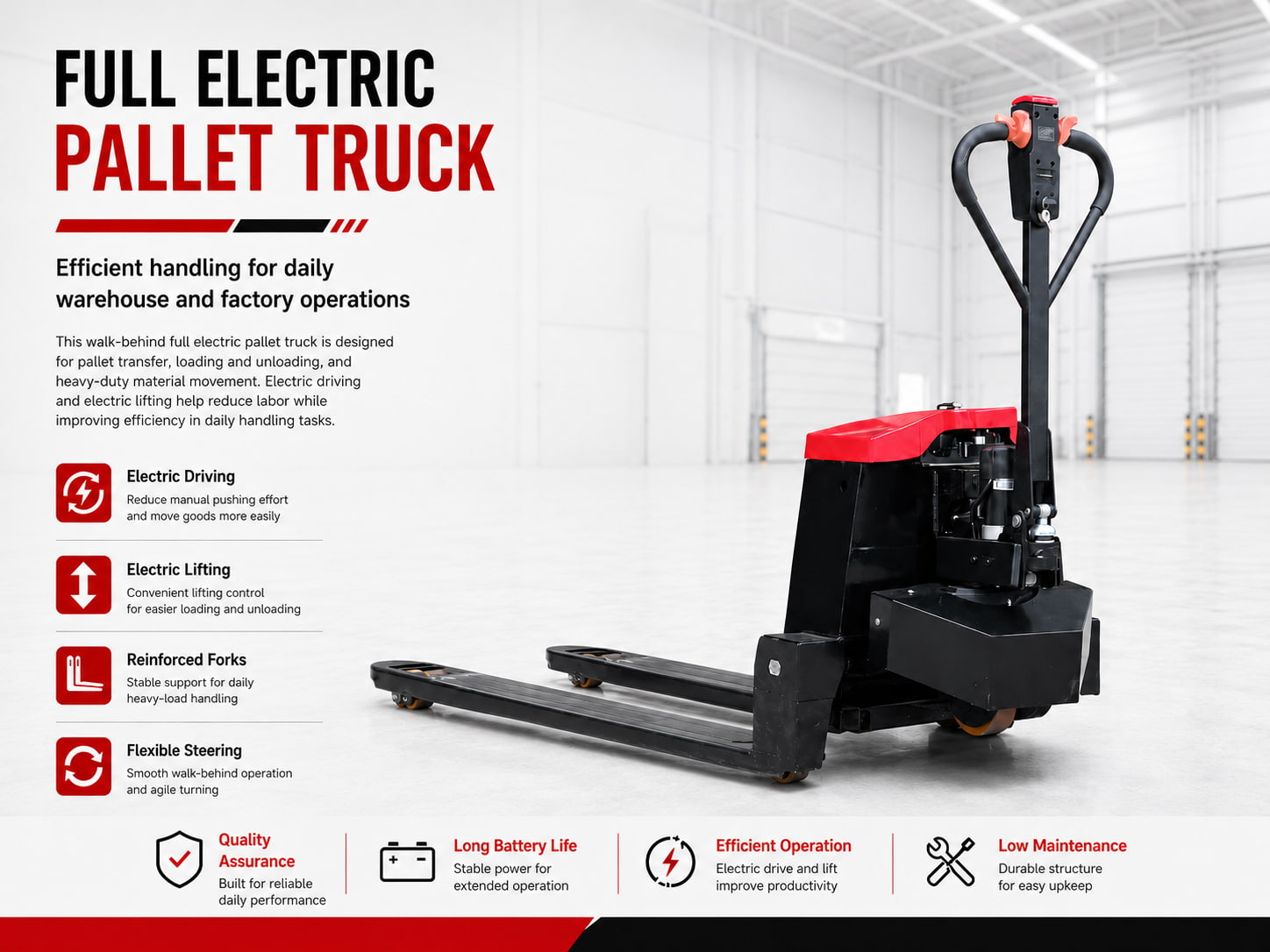

Efficient Handling
For Warehouse And Factory Operations
This full electric pallet truck is designed for daily pallet transfer, loading and unloading, and heavy-duty material movement. Electric driving and electric lifting help reduce manual labor while improving handling efficiency.
- Electric driving for labor-saving operation
- Electric lifting for easier pallet handling
- Suitable for warehouse and factory transfer
- Practical design for daily material movement

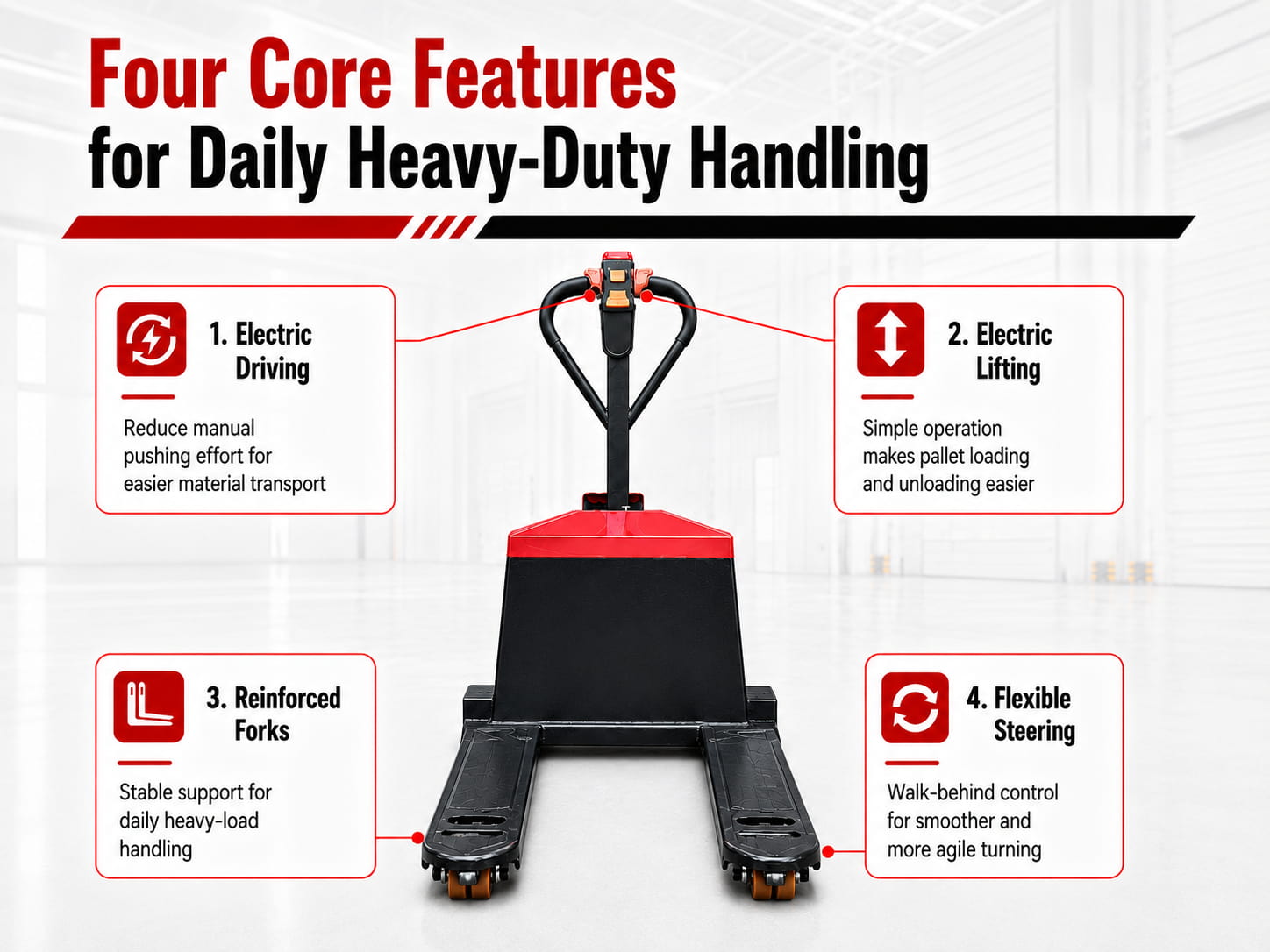

Four Core Features
For Daily Heavy-Duty Handling
Built for practical warehouse use, this electric pallet truck combines electric driving, electric lifting, reinforced forks and flexible steering. It is suitable for pallet goods, cartons and factory material transfer.
- Electric drive for easier movement
- Electric lift reduces repeated manual operation
- Reinforced forks support stable pallet handling
- Flexible steering for warehouse aisles

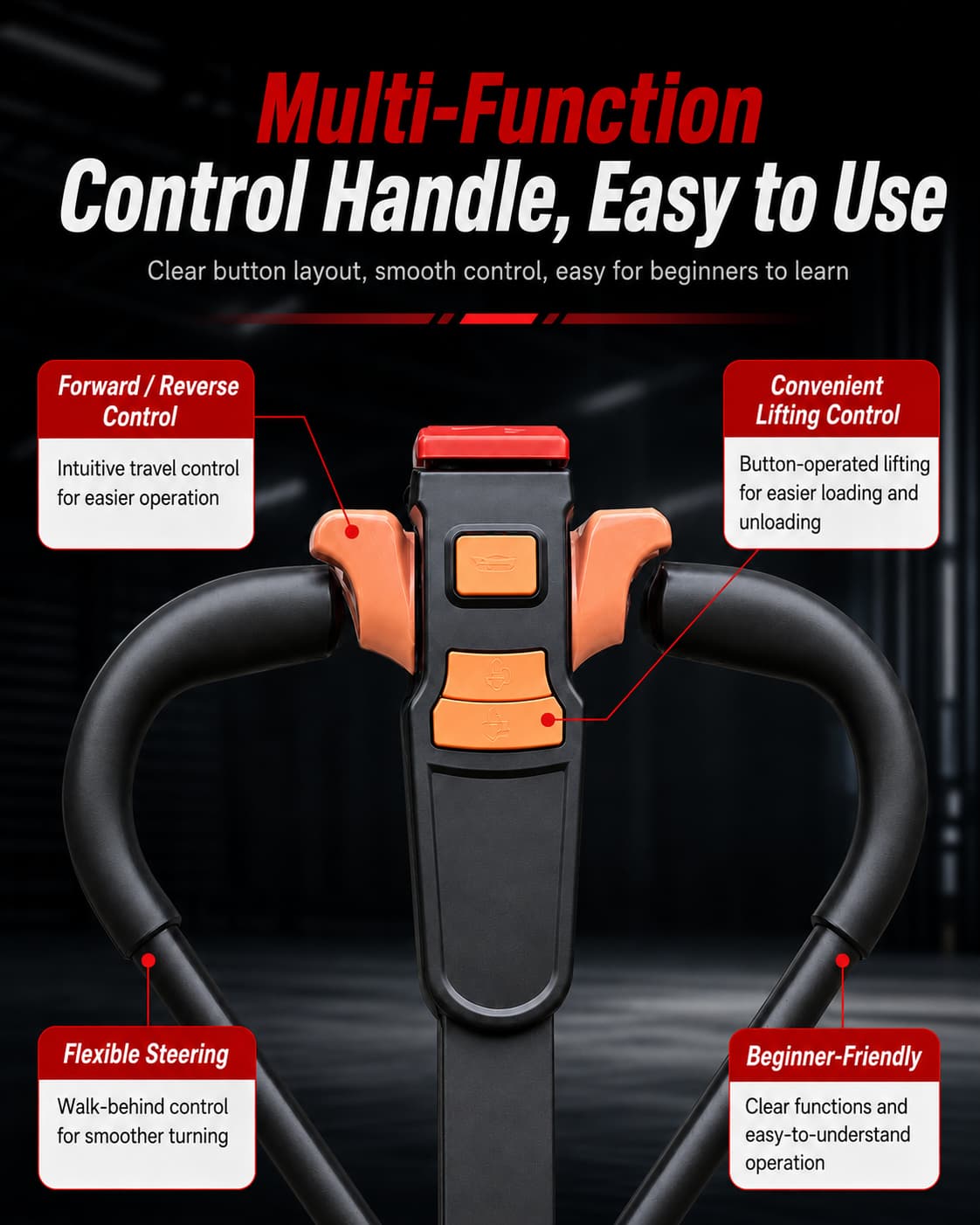

Multi-Function Control Handle
Easy To Operate
The handle layout is clear and easy to understand. Forward and reverse control, lifting operation and steering are designed for smooth walk-behind operation, helping new operators get started quickly.
- Forward and reverse movement control
- Lifting function for daily pallet handling
- Flexible steering for narrow working areas
- Simple operation for new operators

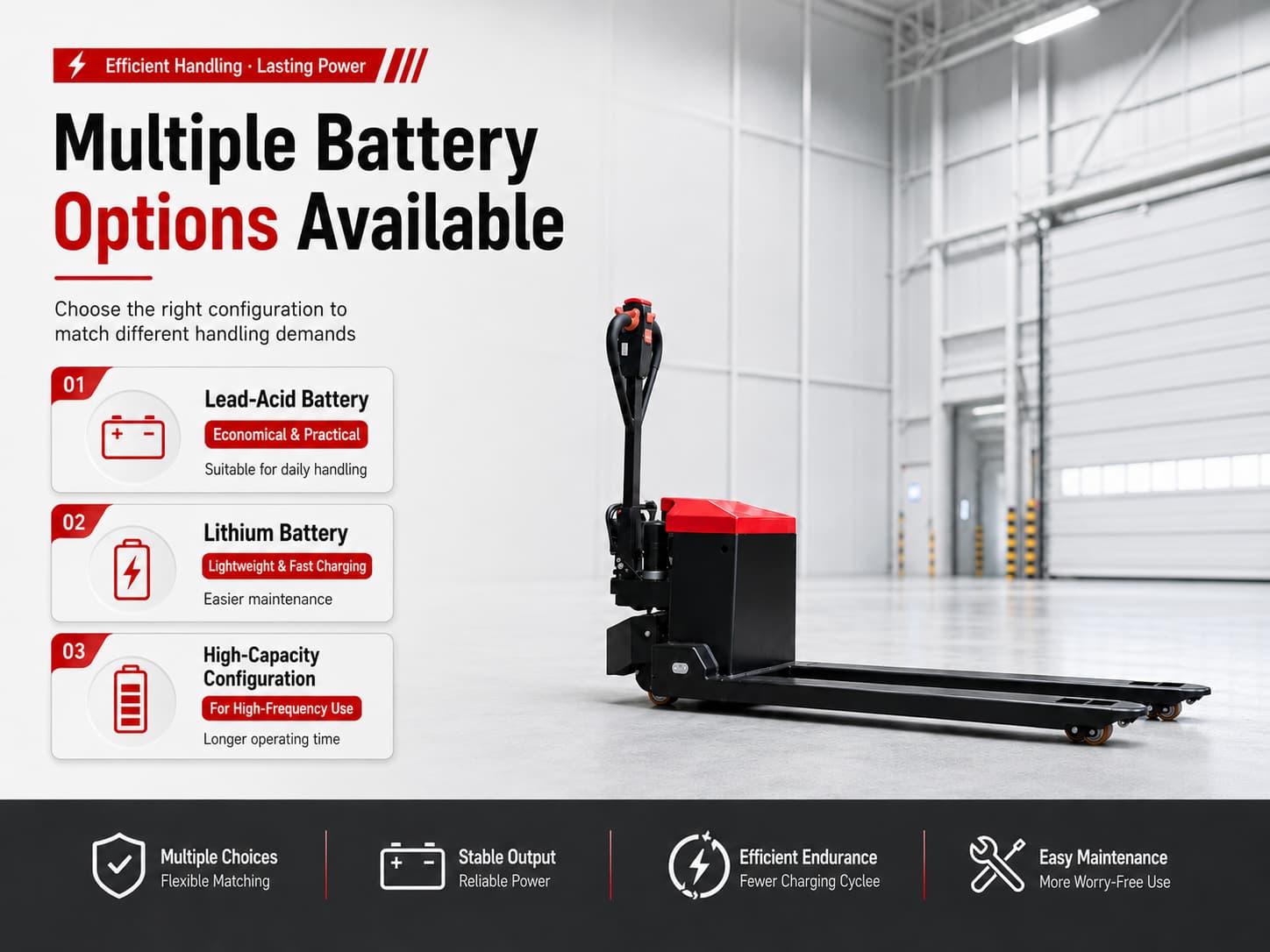

Multiple Battery Options
For Different Working Needs
Different battery configurations are available to match different handling intensity. Lead-acid battery is economical and practical for daily use, while lithium battery offers lightweight design, fast charging and easier maintenance.
- Lead-acid battery for economical daily use
- Lithium battery option for easier maintenance
- High-capacity options for longer working time
- Suitable for different warehouse applications
Need A Price For This Electric Pallet Truck?
Tell us your required load capacity, fork width, battery type and working environment.
Our team will recommend a suitable model and provide a quotation quickly.

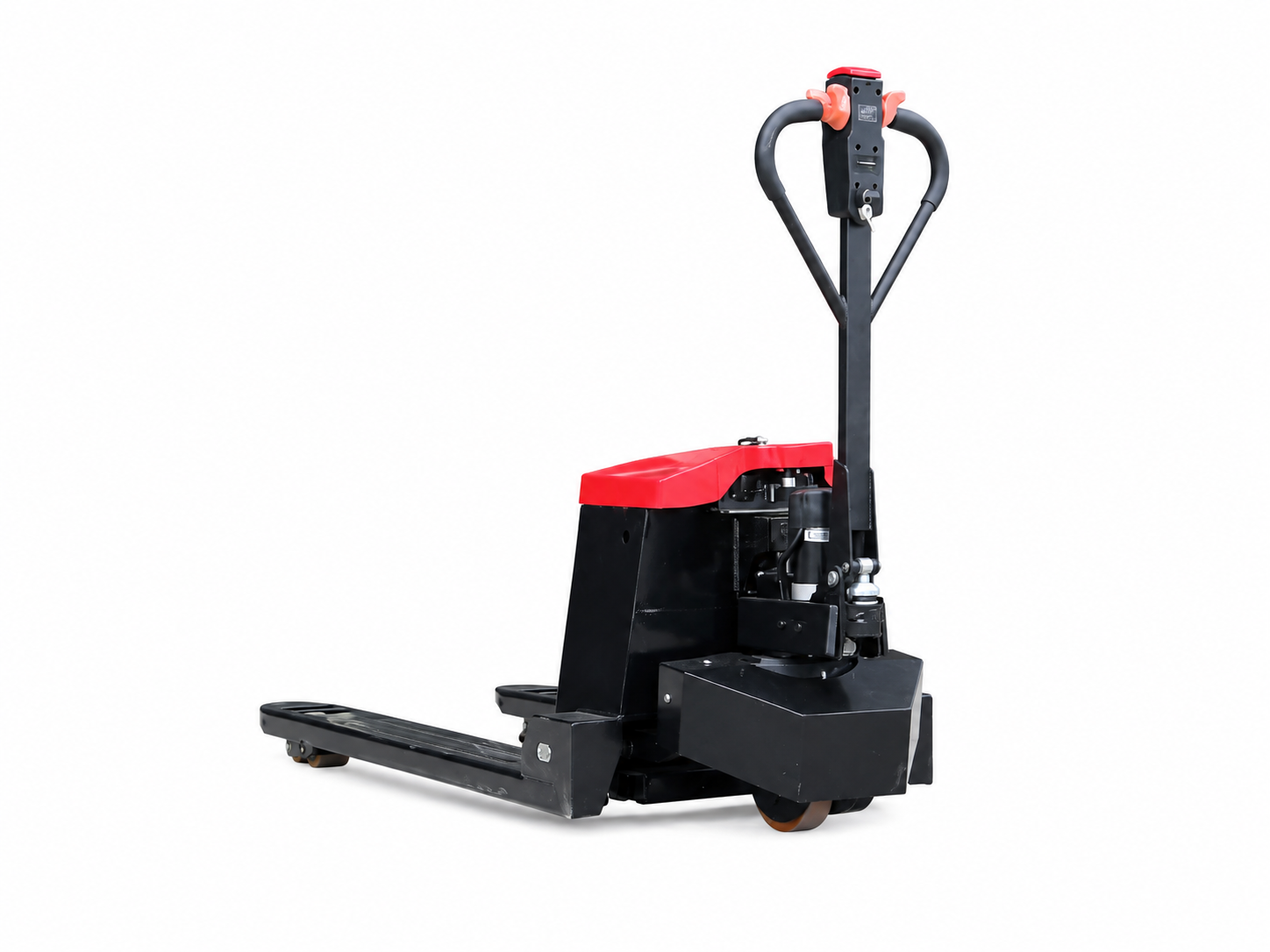

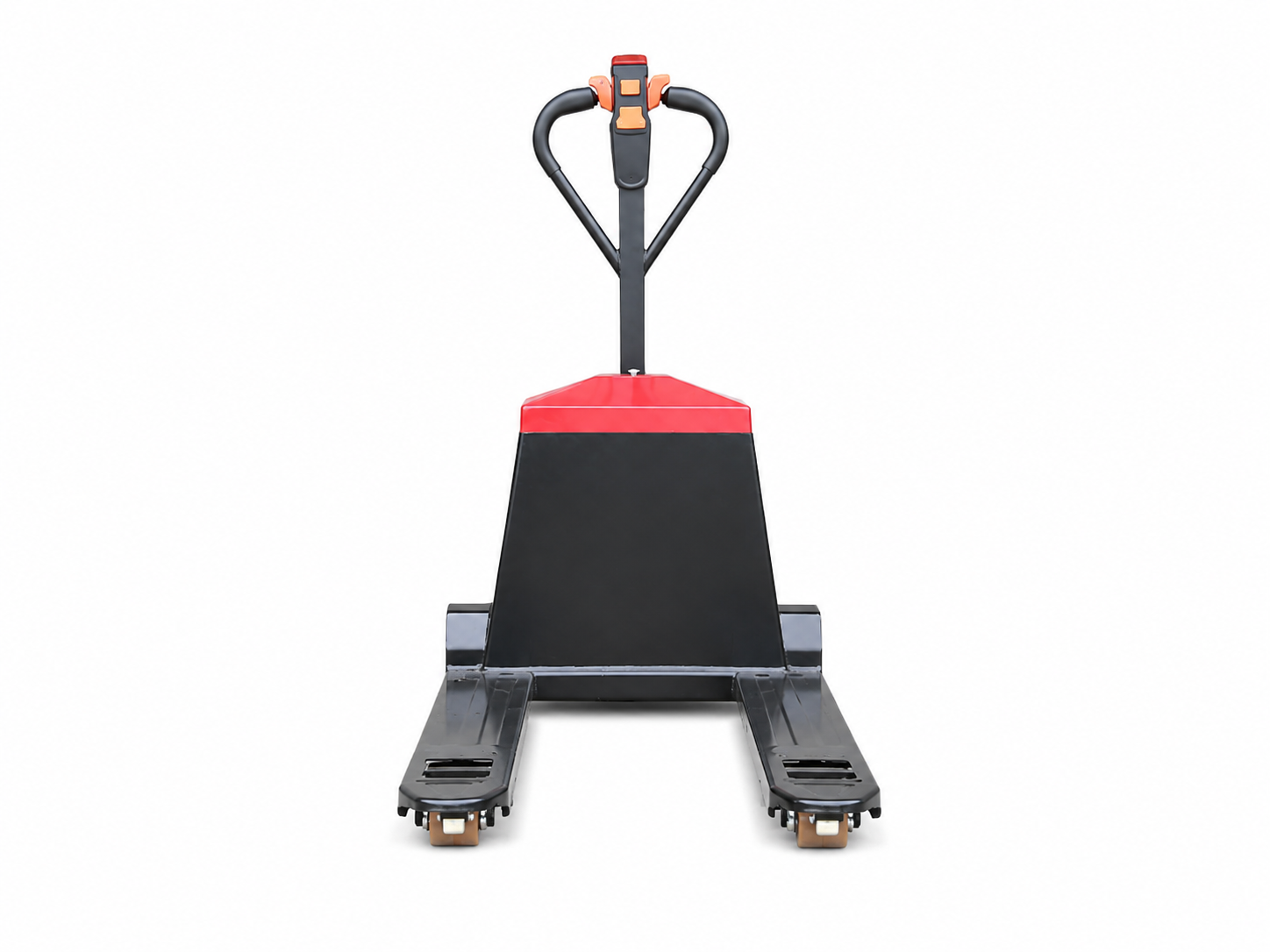

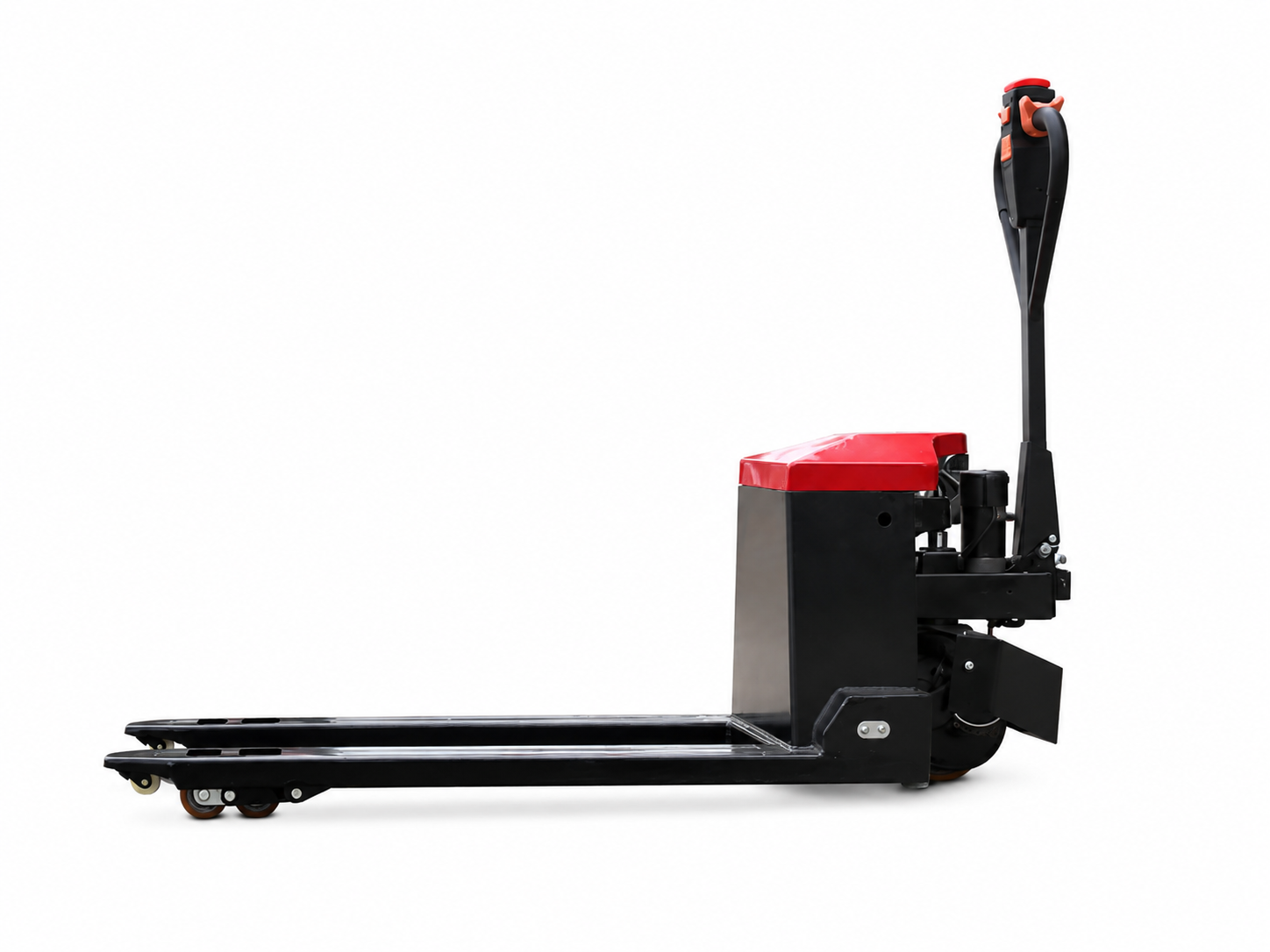

The New Electric Pallet Truck
Battery electric pallet truck designed for 3000kg load handling, warehouse transfer, factory material movement and efficient pallet transport.
| Category | No. | Item | Unit | Specification |
|---|---|---|---|---|
| Features | ||||
| Features | 1.1 | Origin | – | Changge, Henan |
| Features | 1.2 | Brand | – | / |
| Features | 1.3 | Model | – | New |
| Features | 1.4 | Power Type | – | Lead-acid Battery / Optional Lithium Battery |
| Features | 1.5 | Operation Type | – | Walking Type |
| Features | 1.6 | Rated Load | kg | 3000 |
| Features | 1.7 | Load Center Distance | mm | 500 |
| Features | 1.8 | Lift Height | mm | 200 |
| Dimensions | ||||
| Dimensions | 2.1 | Overall Size (L×W×H) | mm | 1670×(550/685)×1325 |
| Dimensions | 2.2 | Fork Size | mm | 1150×160×55 |
| Dimensions | 2.3 | Fork Width Min./Max. | mm | 550/685 |
| Dimensions | 2.4 | Minimum Ground Clearance | mm | 85 |
| Dimensions | 2.5 | Minimum Turning Radius | mm | 1200 |
| Weight | ||||
| Weight | 3.1 | Truck Weight Including Battery | kg | 175 |
| Weight | 3.2 | Battery Weight | kg | 20 |
| Wheels | ||||
| Wheels | 4.1 | Wheel Type (Drive / Steering) | – | Solid PU Tires |
| Wheels | 4.2 | Drive Wheel Size | mm | 160×55 |
| Wheels | 4.3 | Load Wheel Size | mm | 80×70 |
| Power Unit & Control | ||||
| Power Unit & Control | 5.1 | Drive Motor Rated Power | kW (60min) | 1.8 |
| Power Unit & Control | 5.2 | Lifting Motor Rated Power | kW (60min) | 0.8 |
| Power Unit & Control | 5.3 | Cylinder Diameter | mm | 55 |
| Power Unit & Control | 5.4 | Battery Size | mm | 159×188×104 |
| Power Unit & Control | 5.5 | Battery Voltage / Capacity | V/Ah | 2×24/20 |
| Power Unit & Control | 5.6 | Controller | – | AC |
| Power Unit & Control | 5.7 | Working Pressure | MPa | 14 |
| Performance | ||||
| Performance | 6.1 | Travel Speed (Loaded / Unloaded) | km/h | 3.5/4 |
| Performance | 6.2 | Maximum Gradeability | % | 4 |
| Performance | 6.3 | Brake Type | – | Electromagnetic Brake |
| Others | ||||
| Others | 7.1 | Drive Control Type | – | Electric |
| Others | 7.2 | Steering Type | – | Manual |
| Others | 7.3 | Noise Level | dB | 63 |
| Others | 7.4 | Waterproof Grade | – | IPX4 |
Need A Price For This Full Electric Pallet Truck?
Tell us your required load capacity, fork size, battery type and working environment.
Our team will recommend a suitable model and provide a quotation quickly.
Request A Quote
Please fill in your requirements below.
