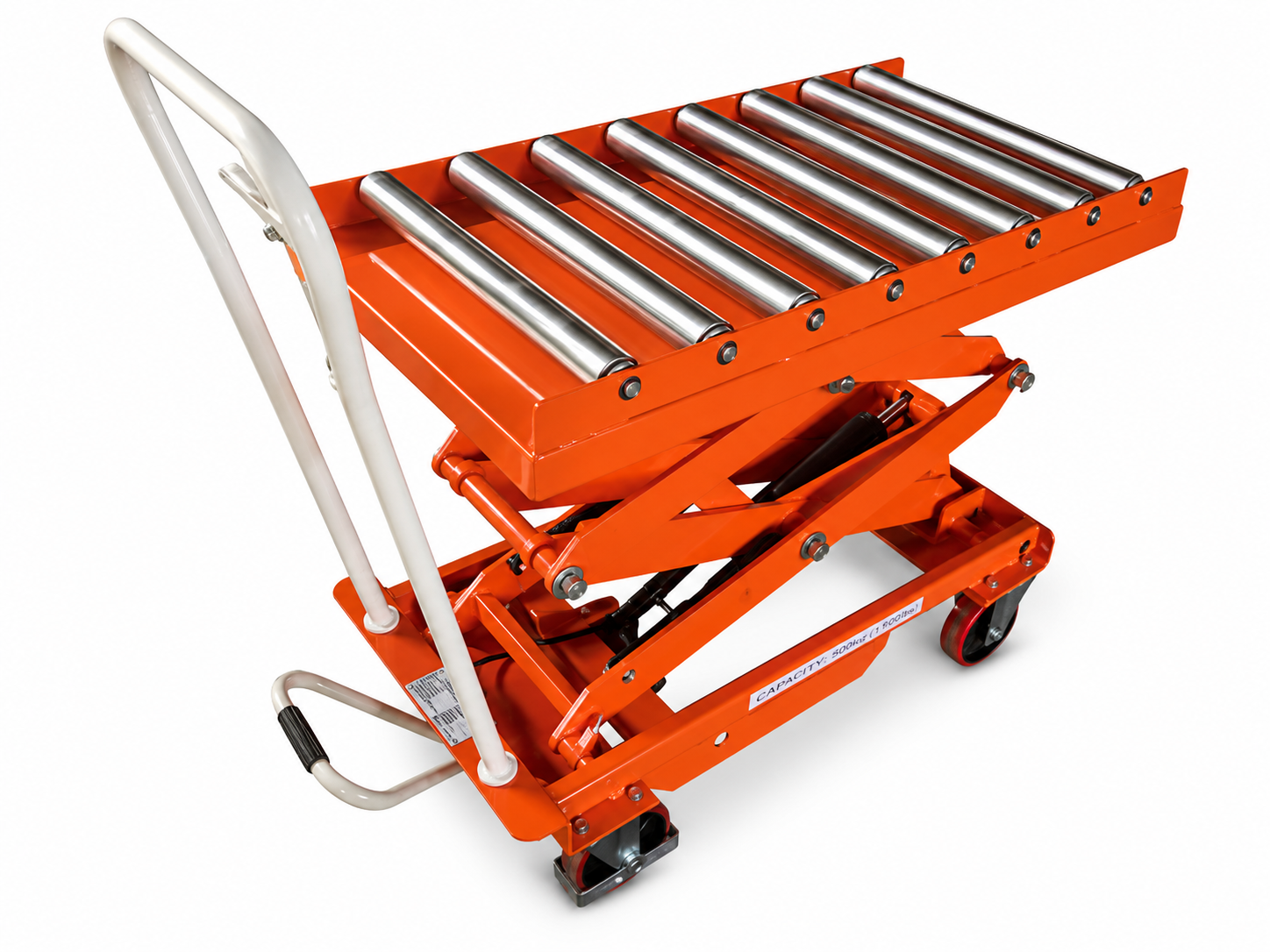

Roller Platform Pallet Truck

Stationary Lift Table Specifications

Heavy-duty stationary lift table designed for stable lifting, loading and height adjustment in warehouses, workshops, factories and production lines.
The specifications below are reorganized into mobile-friendly cards for easier reading on phones.

1000KG Series

Model Options8

Height Range205/990 / 240/1300

Platform Options8

Power380V/50Hz

Weight Range160–430 kg

2000KG Series

Model Options8

Height Range230/1000 / 250/1300 / 250/1400

Platform Options8

Power380V/50Hz

Weight Range235–500 kg

4000KG Series

Model Options8

Height Range240/1050 / 300/1400 / 350/1300

Platform Options7

Power380V/50Hz

Weight Range375–655 kg

1000KG Model Options

HW1001

Capacity1000 kg

Min./Max. Height205/990 mm

Platform Size1300×820 mm

Base Size1240×640 mm

Lifting Time20-25 s

Power380V/50Hz

Weight160 kg

HW1002

Capacity1000 kg

Min./Max. Height205/990 mm

Platform Size1600×1000 mm

Base Size1240×640 mm

Lifting Time20-25 s

Power380V/50Hz

Weight186 kg

HW1003

Capacity1000 kg

Min./Max. Height240/1300 mm

Platform Size1700×850 mm

Base Size1580×640 mm

Lifting Time30-35 s

Power380V/50Hz

Weight200 kg

HW1004

Capacity1000 kg

Min./Max. Height240/1300 mm

Platform Size1700×1000 mm

Base Size1580×640 mm

Lifting Time30-35 s

Power380V/50Hz

Weight210 kg

HW1005

Capacity1000 kg

Min./Max. Height240/1300 mm

Platform Size2000×850 mm

Base Size1580×640 mm

Lifting Time30-35 s

Power380V/50Hz

Weight212 kg

HW1006

Capacity1000 kg

Min./Max. Height240/1300 mm

Platform Size2000×1000 mm

Base Size1580×640 mm

Lifting Time30-35 s

Power380V/50Hz

Weight223 kg

HW1007

Capacity1000 kg

Min./Max. Height240/1300 mm

Platform Size1700×1500 mm

Base Size1580×1320 mm

Lifting Time30-40 s

Power380V/50Hz

Weight365 kg

HW1008

Capacity1000 kg

Min./Max. Height240/1300 mm

Platform Size2000×1700 mm

Base Size1580×1320 mm

Lifting Time40-40 s

Power380V/50Hz

Weight430 kg

2000KG Model Options

HW2001

Capacity2000 kg

Min./Max. Height230/1000 mm

Platform Size1300×850 mm

Base Size1220×785 mm

Lifting Time20-25 s

Power380V/50Hz

Weight235 kg

HW2002

Capacity2000 kg

Min./Max. Height230/1000 mm

Platform Size1600×1000 mm

Base Size1220×785 mm

Lifting Time20-25 s

Power380V/50Hz

Weight268 kg

HW2003

Capacity2000 kg

Min./Max. Height250/1300 mm

Platform Size1700×850 mm

Base Size1600×785 mm

Lifting Time25-35 s

Power380V/50Hz

Weight289 kg

HW2004

Capacity2000 kg

Min./Max. Height250/1300 mm

Platform Size1700×1000 mm

Base Size1600×785 mm

Lifting Time25-35 s

Power380V/50Hz

Weight300 kg

HW2005

Capacity2000 kg

Min./Max. Height250/1300 mm

Platform Size2000×850 mm

Base Size1600×785 mm

Lifting Time25-35 s

Power380V/50Hz

Weight300 kg

HW2006

Capacity2000 kg

Min./Max. Height250/1300 mm

Platform Size2000×1000 mm

Base Size1600×785 mm

Lifting Time25-35 s

Power380V/50Hz

Weight315 kg

HW2007

Capacity2000 kg

Min./Max. Height250/1400 mm

Platform Size1700×1500 mm

Base Size1600×1435 mm

Lifting Time25-35 s

Power380V/50Hz

Weight415 kg

HW2008

Capacity2000 kg

Min./Max. Height250/1400 mm

Platform Size2000×1800 mm

Base Size1600×1435 mm

Lifting Time25-35 s

Power380V/50Hz

Weight500 kg

4000KG Model Options

HW4001

Capacity4000 kg

Min./Max. Height240/1050 mm

Platform Size1700×1200 mm

Base Size1600×900 mm

Lifting Time30-40 s

Power380V/50Hz

Weight375 kg

HW4002

Capacity4000 kg

Min./Max. Height240/1050 mm

Platform Size2000×1200 mm

Base Size1600×900 mm

Lifting Time30-40 s

Power380V/50Hz

Weight405 kg

HW4003

Capacity4000 kg

Min./Max. Height300/1400 mm

Platform Size2000×1000 mm

Base Size1900×900 mm

Lifting Time30-40 s

Power380V/50Hz

Weight470 kg

HW4004

Capacity4000 kg

Min./Max. Height300/1400 mm

Platform Size2000×1200 mm

Base Size1980×900 mm

Lifting Time35-40 s

Power380V/50Hz

Weight490 kg

HW4005

Capacity4000 kg

Min./Max. Height300/1400 mm

Platform Size2200×1000 mm

Base Size1980×900 mm

Lifting Time35-40 s

Power380V/50Hz

Weight480 kg

HW4006

Capacity4000 kg

Min./Max. Height300/1400 mm

Platform Size2200×1200 mm

Base Size1980×900 mm

Lifting Time35-40 s

Power380V/50Hz

Weight505 kg

HW4007

Capacity4000 kg

Min./Max. Height350/1300 mm

Platform Size1700×1500 mm

Base Size1620×1400 mm

Lifting Time35-45 s

Power380V/50Hz

Weight570 kg

HW4008

Capacity4000 kg

Min./Max. Height350/1300 mm

Platform Size2200×1800 mm

Base Size1620×1400 mm

Lifting Time35-45 s

Power380V/50Hz

Weight655 kg

Note: The above parameters are standard reference values. Final configuration may vary according to product upgrades or custom requirements.
