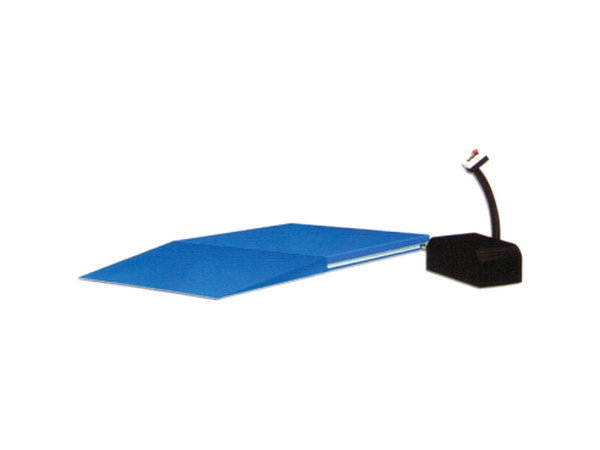

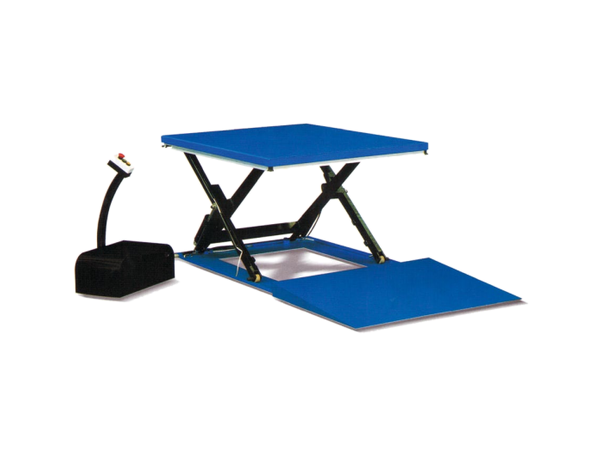

Ultra-Low Electric Lift Platform Specification Table
Ultra-low electric lift platforms are suitable for low-height cargo loading and unloading applications.
They feature stable lifting performance, anti-pinch scissor protection, overload protection and reliable safety design for warehouses, logistics and manufacturing environments.
| Model | Rated Load (kg) | Platform Size (L×W, mm) | Min./Max. Platform Height (mm) | Net Weight (kg) |
|---|---|---|---|---|
| HY1001 | 1000 | 1450×1140 | 85 / 860 | 357 |
| HY1002 | 1000 | 1600×1140 | 85 / 860 | 364 |
| HY1003 | 1000 | 1450×800 | 85 / 860 | 326 |
| HY1004 | 1000 | 1600×800 | 85 / 860 | 332 |
| HY1005 | 1000 | 1600×1000 | 85 / 860 | 352 |
| HY1501 | 1500 | 1600×800 | 105 / 870 | 302 |
| HY1502 | 1500 | 1600×1000 | 105 / 870 | 401 |
| HY1503 | 1500 | 1600×1200 | 105 / 870 | 415 |
| HY2001 | 2000 | 1600×1200 | 105 / 870 | 419 |
| HY2002 | 2000 | 1600×1000 | 105 / 870 | 405 |
