Technical Parameters

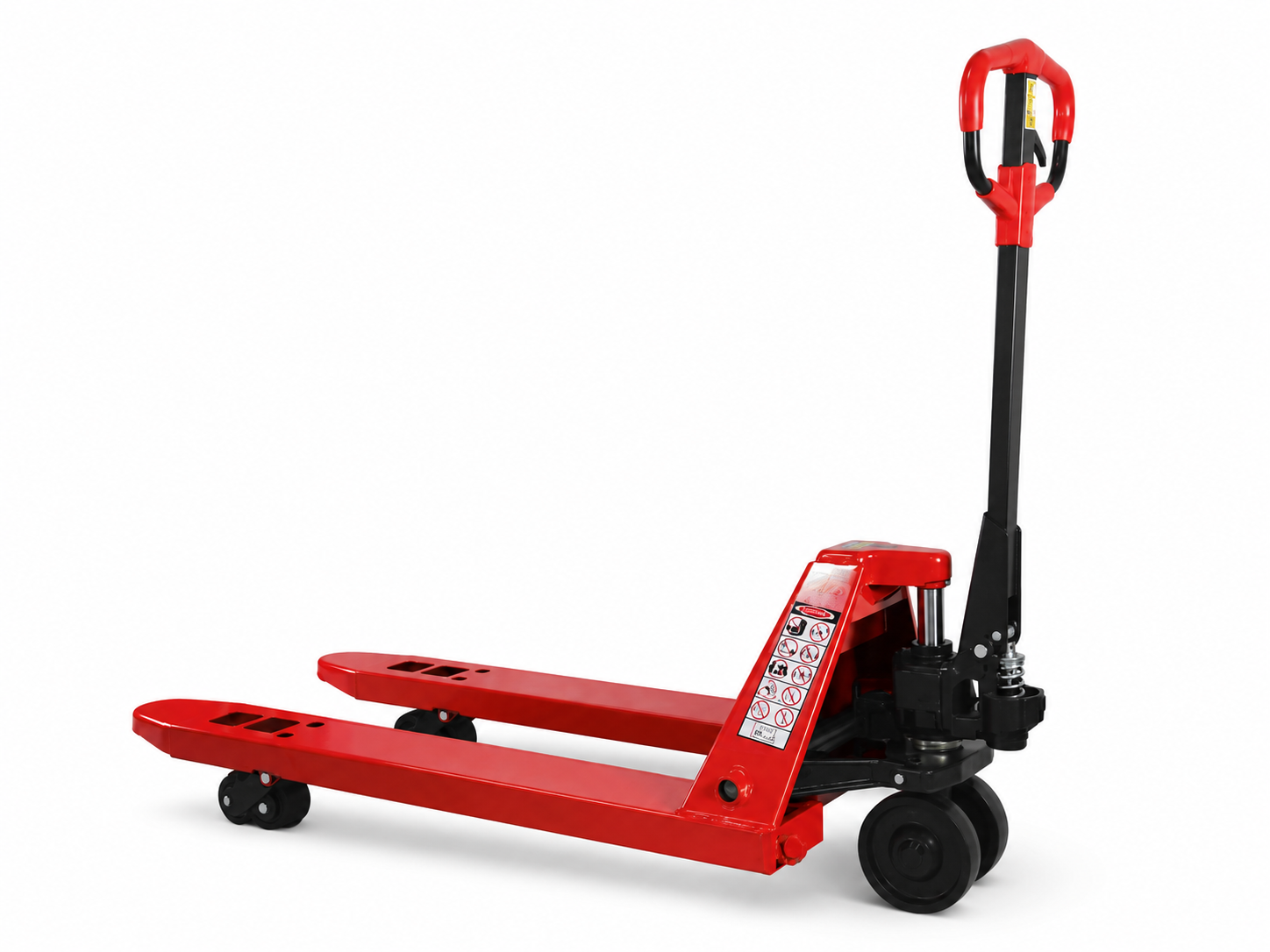

5T Low Profile Pallet Truck
| Rated Load | Kg | 5000 |
| Minimum Fork Height | H1 (mm) | 95 |
| Maximum Fork Height | H (mm) | 185 |
| Maximum Lifting Stroke | mm | 100 |
| Fork Outer Width | W (mm) | 540/685 |
| Fork Inner Width | W1 (mm) | 180/325 |
| Fork Length | L1 (mm) | 1150/1220 |
| Single Fork Width | B (mm) | 180 |
| Fork Thickness | s (mm) | 60 |
| Overall Length | L (mm) | 1670 |
| Overall Height | H2 (mm) | 1230 |
| Oil Cylinder Piston Rod | mm | Φ40 |
| Load Double Wheel Size | mm | Φ90*68 |
| Steering Wheel Size | mm | Φ180*50 |
| Minimum Turning Diameter | mm | 1120/1300/1350/1450 |
| Wheel Material | PU / Nylon / Iron | |
| Truck Net Weight | Kg | 123/130 |
| Gross Weight | Kg | 502/535 |
| Packing Size | a*b*h | 5T 685*1220:2000*700*700 |
