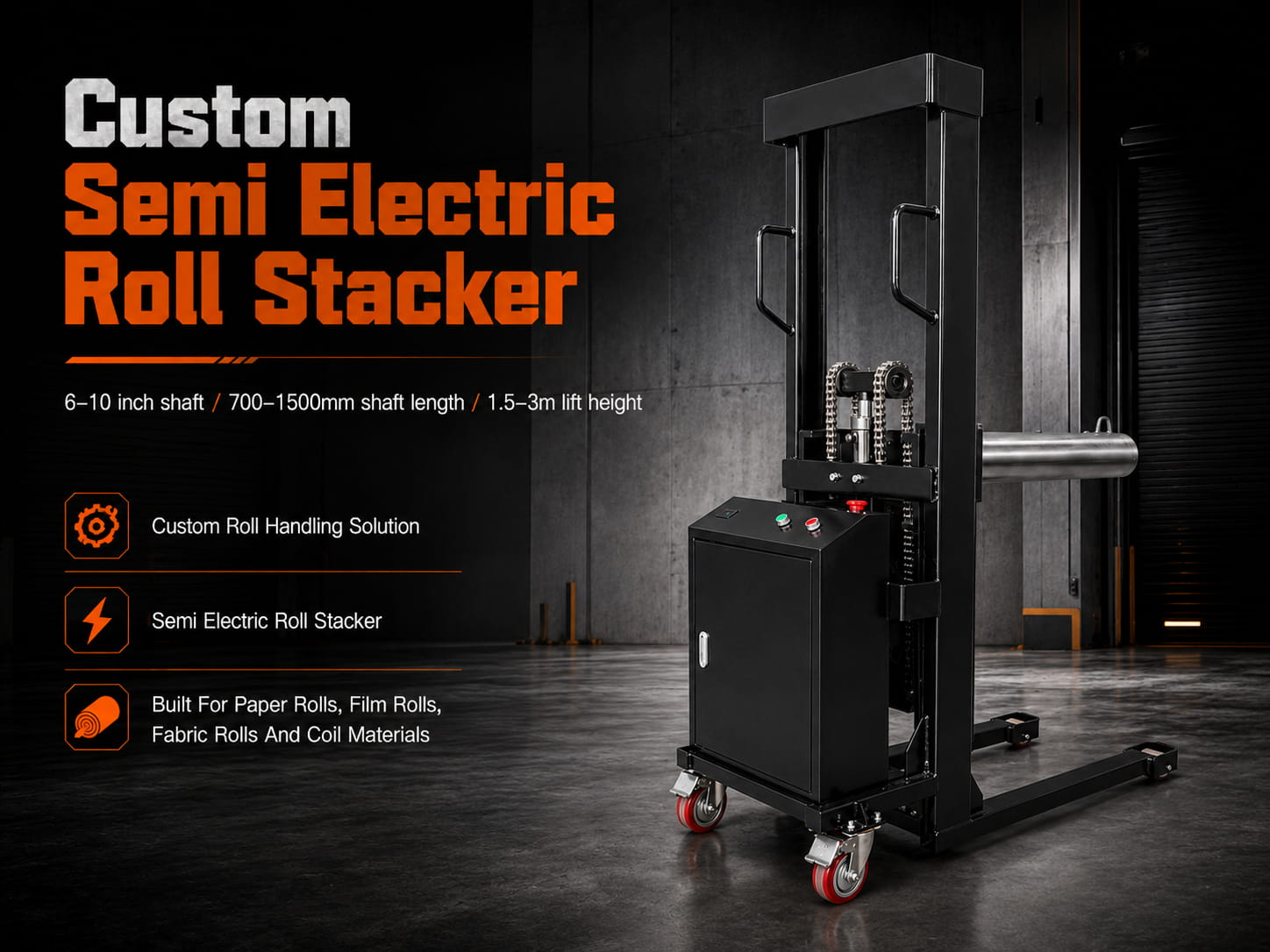

Custom Semi Electric Roll Stacker For Roll Material Handling
This custom semi electric roll stacker is designed for lifting, loading, unloading and transferring roll materials. The horizontal shaft structure is suitable for roll core handling, helping operators move paper rolls, film rolls, fabric rolls, non-woven rolls, foil rolls and coil materials more efficiently.
Built For Paper Rolls, Film Rolls, Fabric Rolls And Coil Materials
With heavy-duty steel frame, compact body and customized roll shaft, this semi electric roll stacker is suitable for workshops, packaging plants, paper warehouses, film processing factories and roll material storage areas.

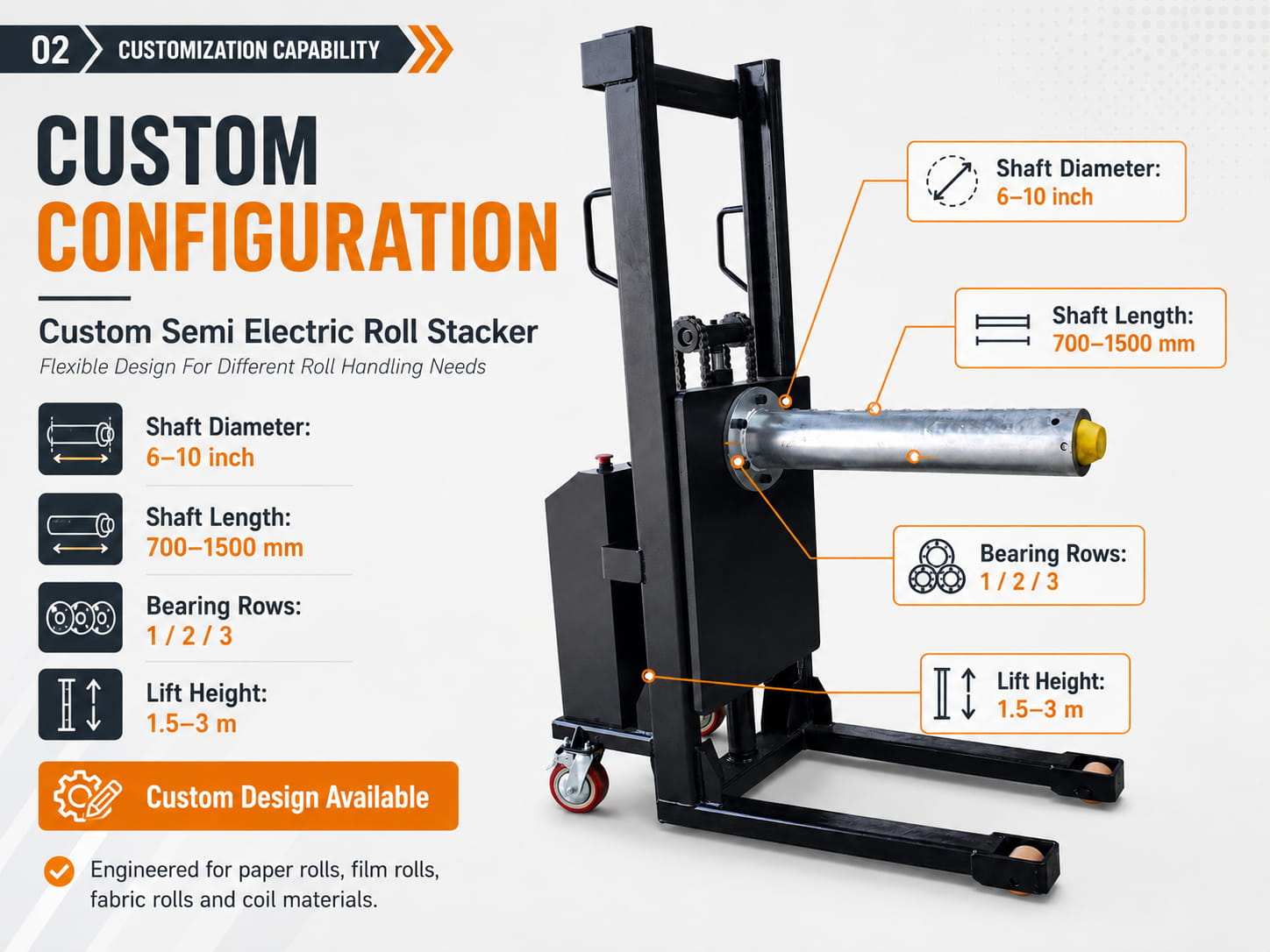

Flexible Design For Different Roll Handling Needs
The shaft diameter, shaft length, bearing rows and lift height can be customized according to roll diameter, roll width, core size, roll weight and working height. It helps the equipment match different production lines and warehouse handling requirements.
Suitable For Various Roll Materials
This roll handling stacker is suitable for paper, packaging, textile, film, printing and converting industries. It can be used for roll loading, roll transfer, workshop handling, packaging roll movement and warehouse roll storage.

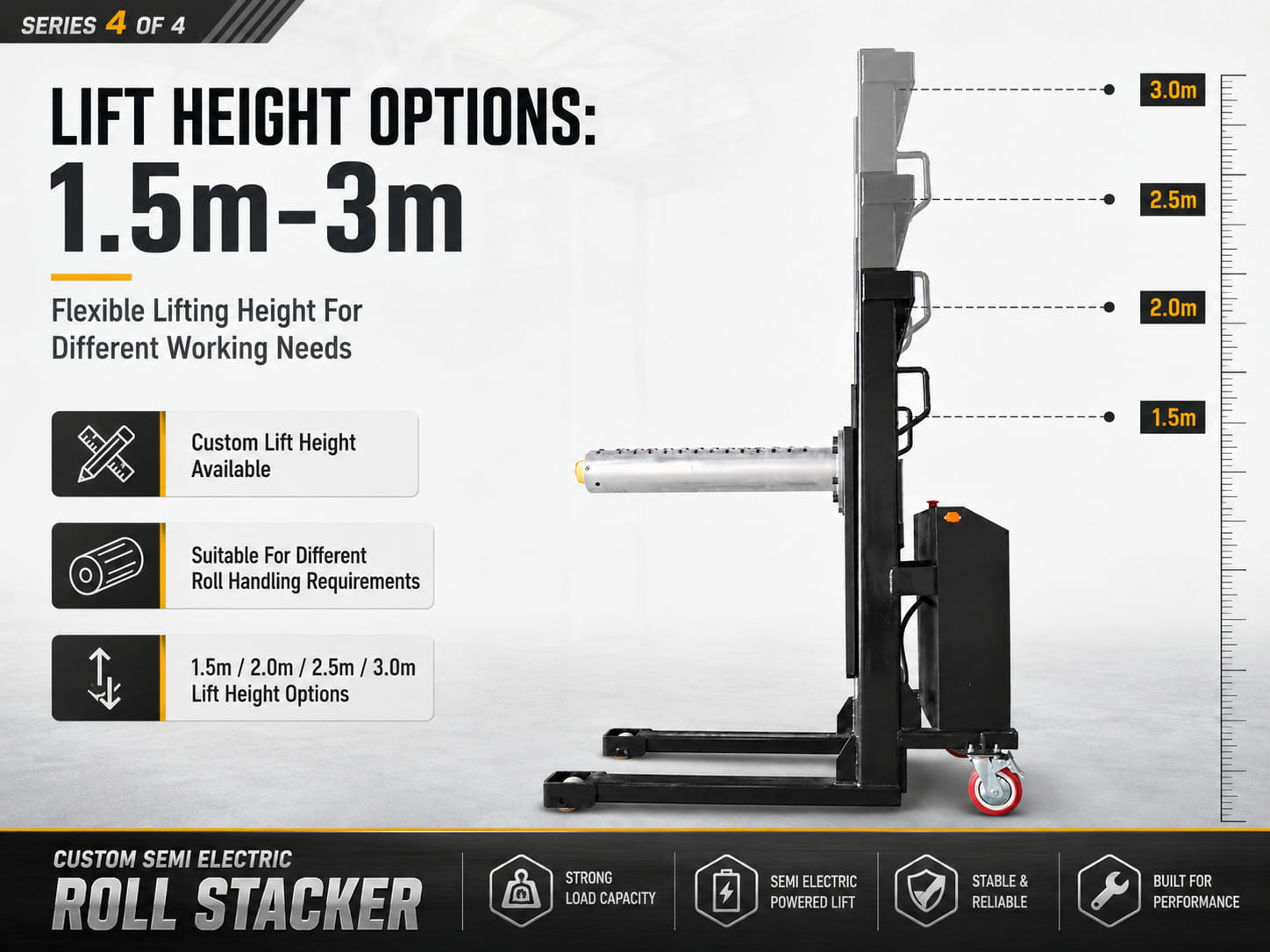

1.5m–3m Lifting Height For Different Working Needs
The lifting height can be customized from 1.5m to 3m, making the stacker suitable for machine feeding, roll loading, rack storage and workshop material transfer. Different lift height options can be selected according to the customer’s actual working environment.

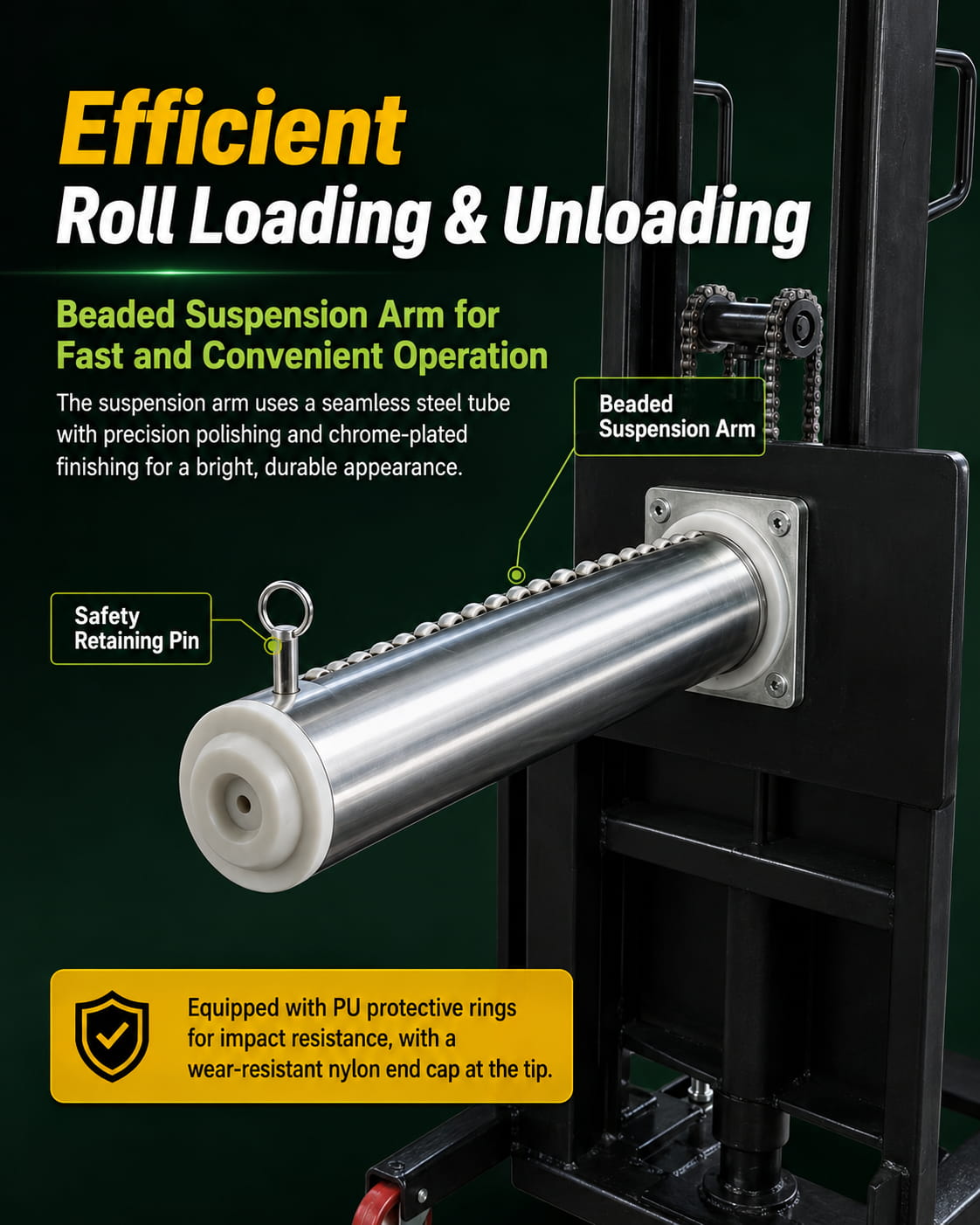

Beaded Suspension Arm For Fast And Convenient Operation
The suspension arm uses a seamless steel tube with precision polishing and chrome-plated finishing for a bright and durable appearance. The safety retaining pin, PU protective rings and wear-resistant nylon end cap help improve roll positioning and protect materials during handling.

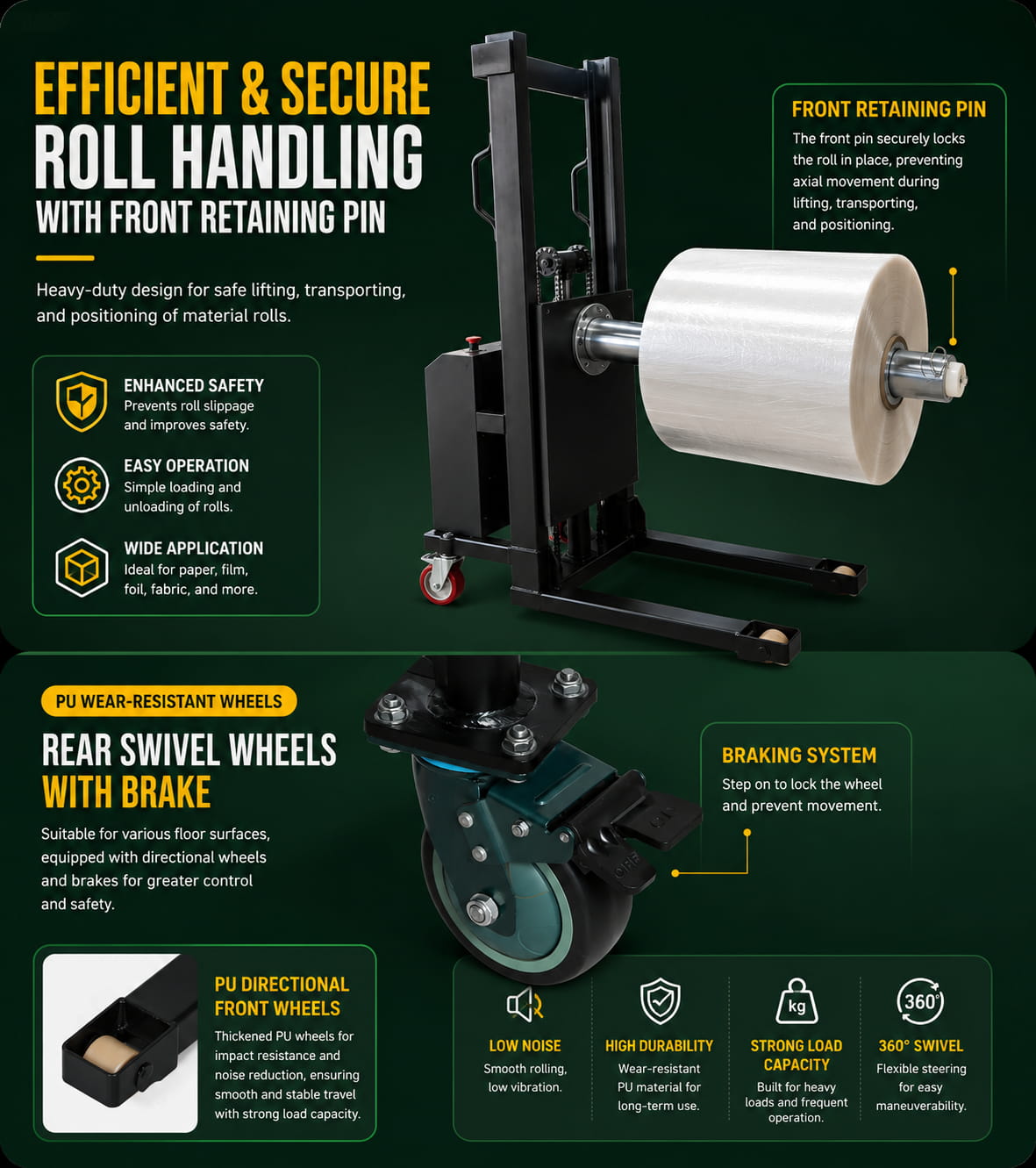

Rear Swivel Wheels With Brake For Stable Movement
PU wear-resistant wheels provide smooth rolling, low noise and strong durability. Rear swivel wheels with brake help lock the equipment during loading and unloading, while front directional wheels improve smooth travel and stable movement under load.
Custom Semi Electric Roll Stacker Parameters
Main customizable parameters for semi electric roll stacker. Final configuration can be adjusted according to roll material, roll diameter, roll width, core size, roll weight and working height.
| Category | Item | Unit | Custom Semi Electric Roll Stacker |
|---|---|---|---|
| Roll Handling Configuration | |||
| Roll Handling | Product Name | – | Custom Semi Electric Roll Stacker |
| Roll Handling | Applicable Materials | – | Paper Roll / Film Roll / Fabric Roll / Non-woven Roll / Foil Roll / Coil Material |
| Roll Handling | Shaft Diameter | inch | 6–10 |
| Roll Handling | Shaft Length | mm | 700–1500 |
| Roll Handling | Bearing Rows | – | 1 / 2 / 3 |
| Roll Handling | Roll Locking | – | Safety Retaining Pin |
| Lifting System | |||
| Lifting | Lift Height | m | 1.5–3 |
| Lifting | Lifting Type | – | Semi Electric Powered Lift |
| Lifting | Operation Type | – | Walkie Operation |
| Structure And Movement | |||
| Structure | Body Structure | – | Heavy-duty Steel Frame |
| Structure | Shaft Direction | – | Horizontal Shaft |
| Movement | Wheel Type | – | PU Wear-resistant Wheels |
| Movement | Rear Wheel | – | Swivel Wheel With Brake |
| Movement | Front Wheel | – | PU Directional Front Wheel |
| Customization | |||
| Customization | Custom Design | – | Available |
| Customization | Custom Items | – | Shaft Diameter / Shaft Length / Lift Height / Bearing Rows / Roll Support Structure |
Need A Price For This Custom Roll Stacker?
Tell us your roll material, roll diameter, roll width, core size, roll weight, required lift height and working environment. We can recommend a suitable custom roll handling solution for your application.
Looking For A Custom Roll Handling Stacker?
Please send your roll material, roll size, roll weight and required lifting height. Our team will recommend the suitable shaft size and lifting configuration for your working condition.
Request A Quote
Please fill in your requirements below.
