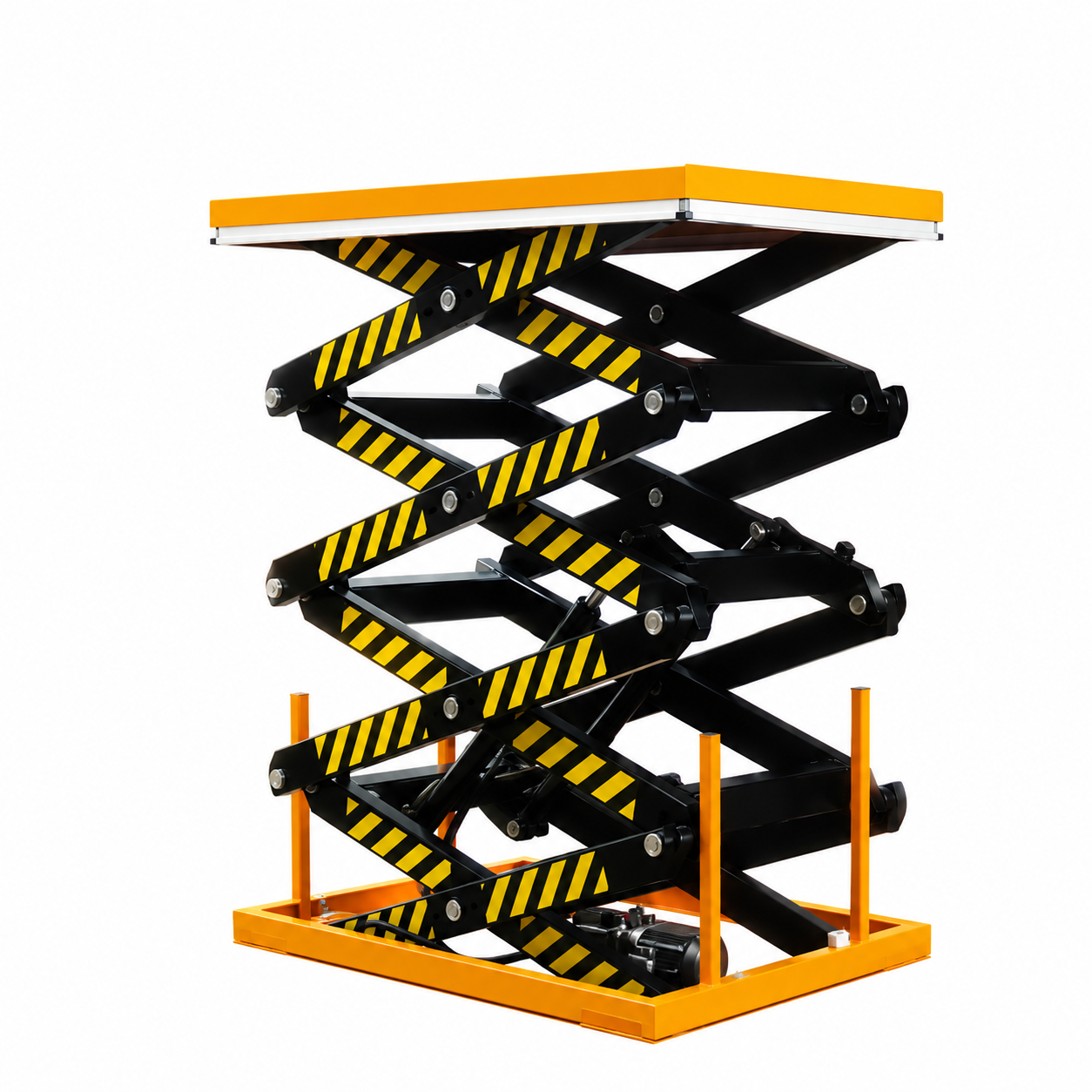

Four Scissor Electric Lift Platform Specifications
Four scissor electric lift platform is suitable for high-level lifting, material positioning, maintenance work and production line height adjustment.
| Item | Unit | HW400F | HW800F | HW2000F |
|---|---|---|---|---|
| Rated Load | kg | 400 | 800 | 2000 |
| Min Height | mm | 600 | 706 | 850 |
| Max Height | mm | 4140 | 4210 | 4200 |
| Platform Size | mm | 1000×1700 | 1000×1700 | 2500×1500 |
| Base Size | mm | 1000×1600 | 1010×1606 | 2400×1200 |
| Lifting Time | sec | 30–40 | 70–80 | 70–80 |
| Lowering Time | sec | 30–40 | 75–85 | 75–85 |
| Power Unit | V / kW | AC380V, 2.2kW | AC380V, 2.2kW | AC380V, 3kW |
| Weight | kg | 600 | 650 | 1500 |
Note: The above parameters are standard reference values. Final configuration may vary according to product upgrades or custom requirements.
