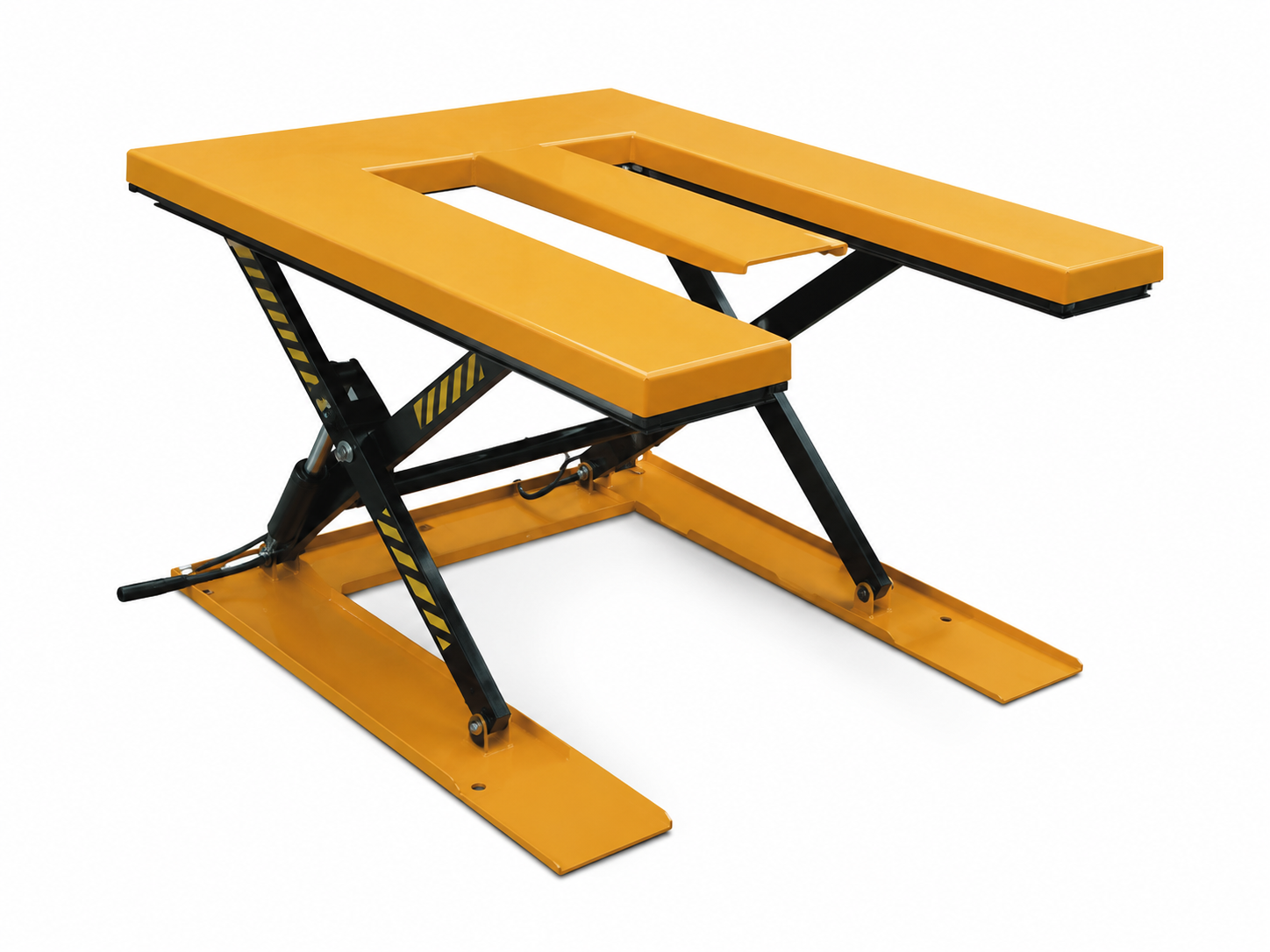

HYE Series Electric Lift Platform Specifications
HYE series electric lift platform is designed for pallet handling, loading assistance and height adjustment.
It is equipped with a dust cover design, safety bar, anti-pinch scissor structure and maintenance safety block for safer and more reliable operation.
High-Quality Pump Station
Stable and powerful lifting performance

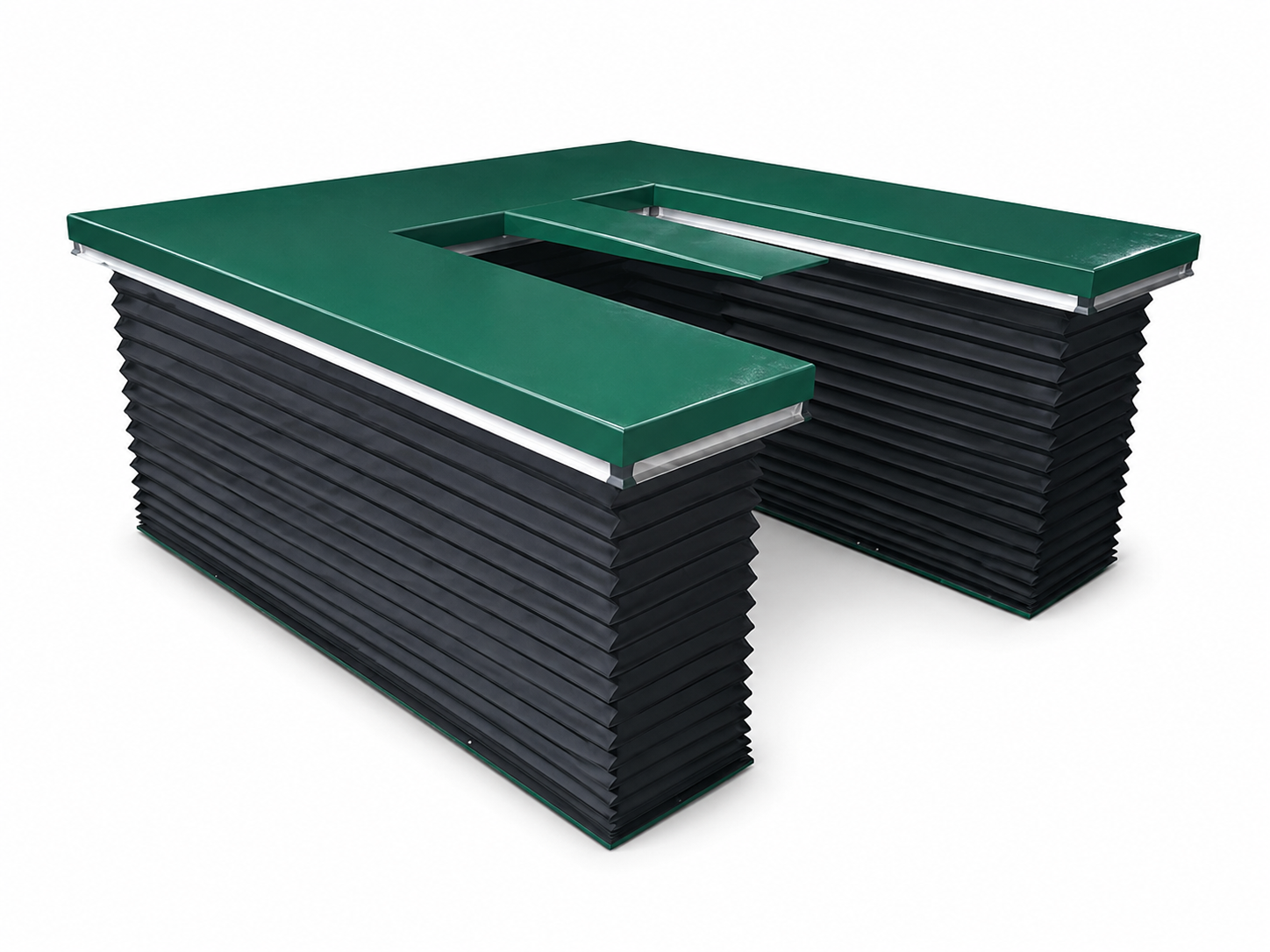

Dust Cover Design
Helps protect the lifting structure
Anti-Pinch Scissor
Designed to help prevent pinch injury
Safety Bar Protection
Stops lowering when meeting obstacles
| Item | Unit | HY1000E | HY1500E |
|---|---|---|---|
| Rated Load | kg | 1000 | 1500 |
| Platform Size L×W | mm | 1450×1140 | 1600×1180 |
| Size A | mm | 280 | 300 |
| Size B | mm | 1080 | 1194 |
| Size C | mm | 580 | 580 |
| Min / Max Platform Height | mm | 85 / 860 | 105 / 860 |
| Net Weight | kg | 280 | 380 |
Note: The above parameters are standard reference values. Final configuration may vary according to product upgrades or custom requirements.
