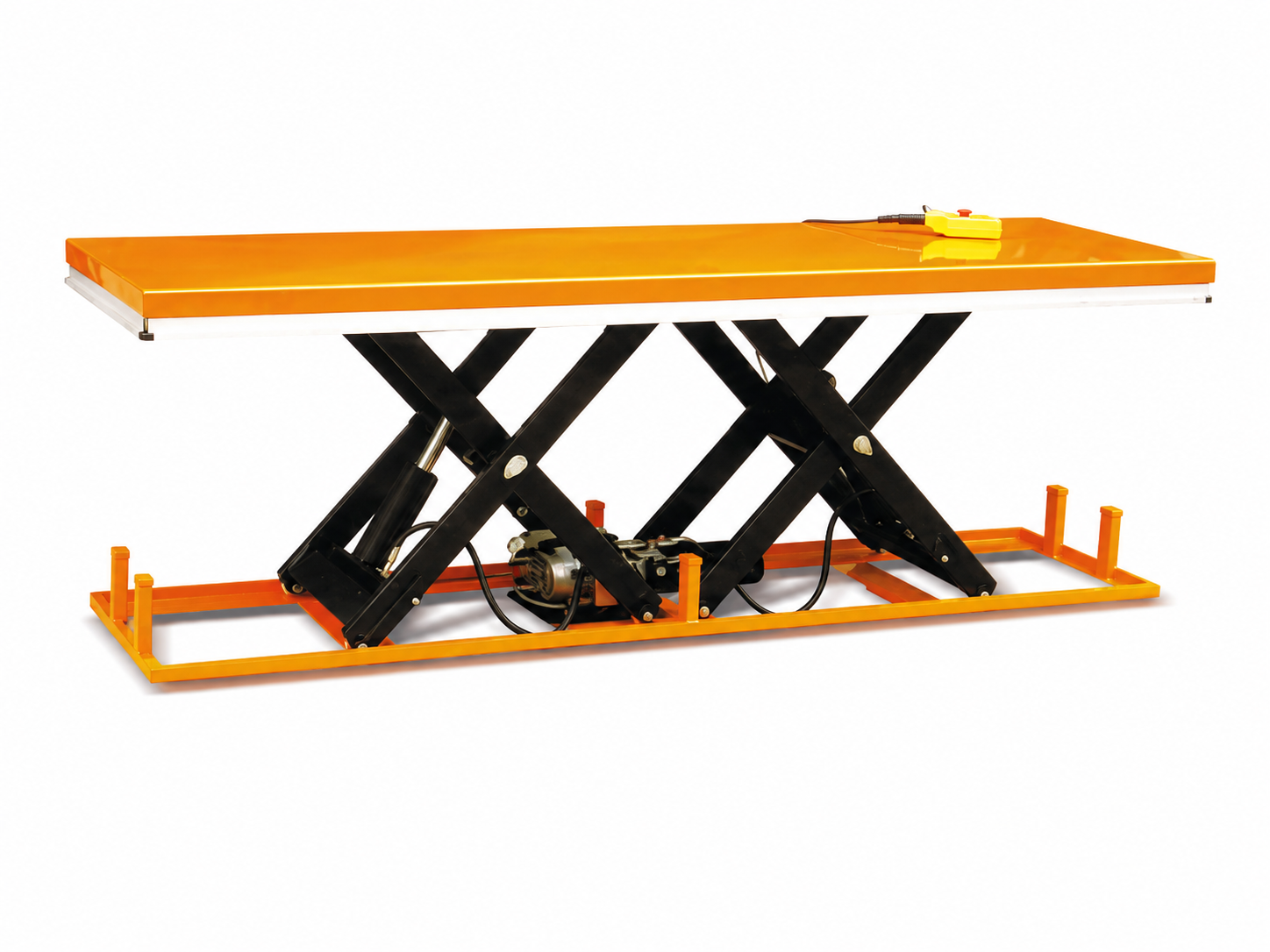

Large Table Electric Lift Platform Specifications
Multiple load capacity and platform size options for workshop lifting, production line loading and heavy material handling.
| Item | Unit | HW500L | HW501L | HW502L | HW2000DL | HW4000DL | HW8000DL |
|---|---|---|---|---|---|---|---|
| Rated Load | kg | 500 | 500 | 500 | 2000 | 4000 | 8000 |
| Platform Size | mm | 2000×800 | 1300×600 | 1300×800 | 2500×820 | 2500×850 | 3400×1200 |
| Base Size | mm | 1615×680 | 1210×585 | 1210×585 | 2460×640 | 2450×785 | 2500×900 |
| Min / Max Height | mm | 200 / 1000 | 180 / 1000 | 180 / 1000 | 205 / 1000 | 230 / 1000 | 300 / 1050 |
| Lifting Time | s | 16–26 | 10–15 | 10–15 | 26–36 | 36–46 | 36–46 |
| Power | V/Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Weight | kg | 193 | 121 | 131 | 265 | 360 | 560 |
Note: The above parameters are standard reference values. Final configuration may vary according to product upgrades or custom requirements.
GET A FAST QUOTE
Need A Price For This Large Table Electric Lift Platform?
Send us your required load capacity, platform size, lifting height and working environment.
We will recommend a suitable model and provide a quotation quickly.
Product Model
Model and quantity
Load Capacity
Required lifting load
Platform Size
Length and width
Working Site
Application environment
Request A Quote
Fill in the form below and we will reply with a suitable solution.
