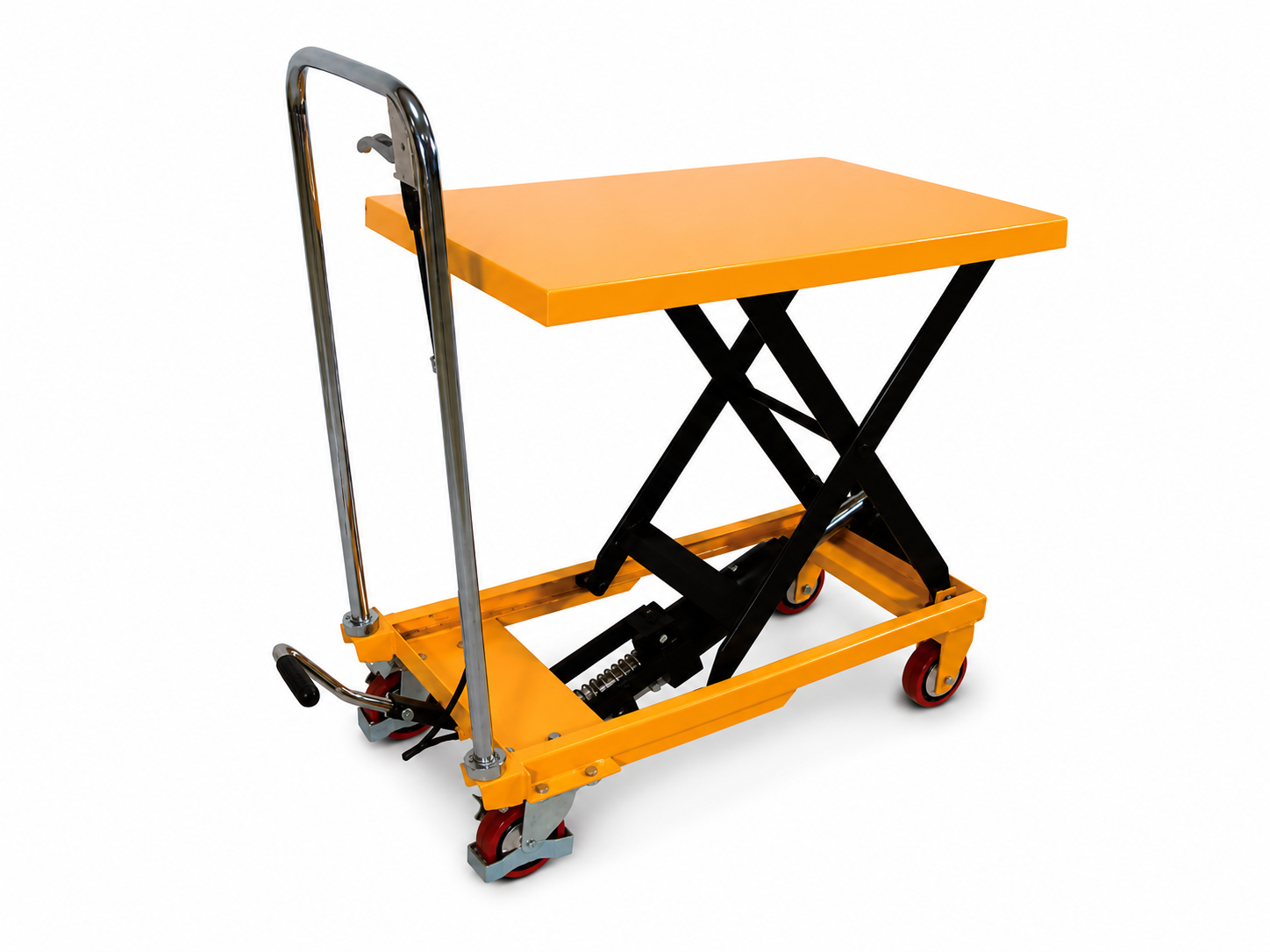

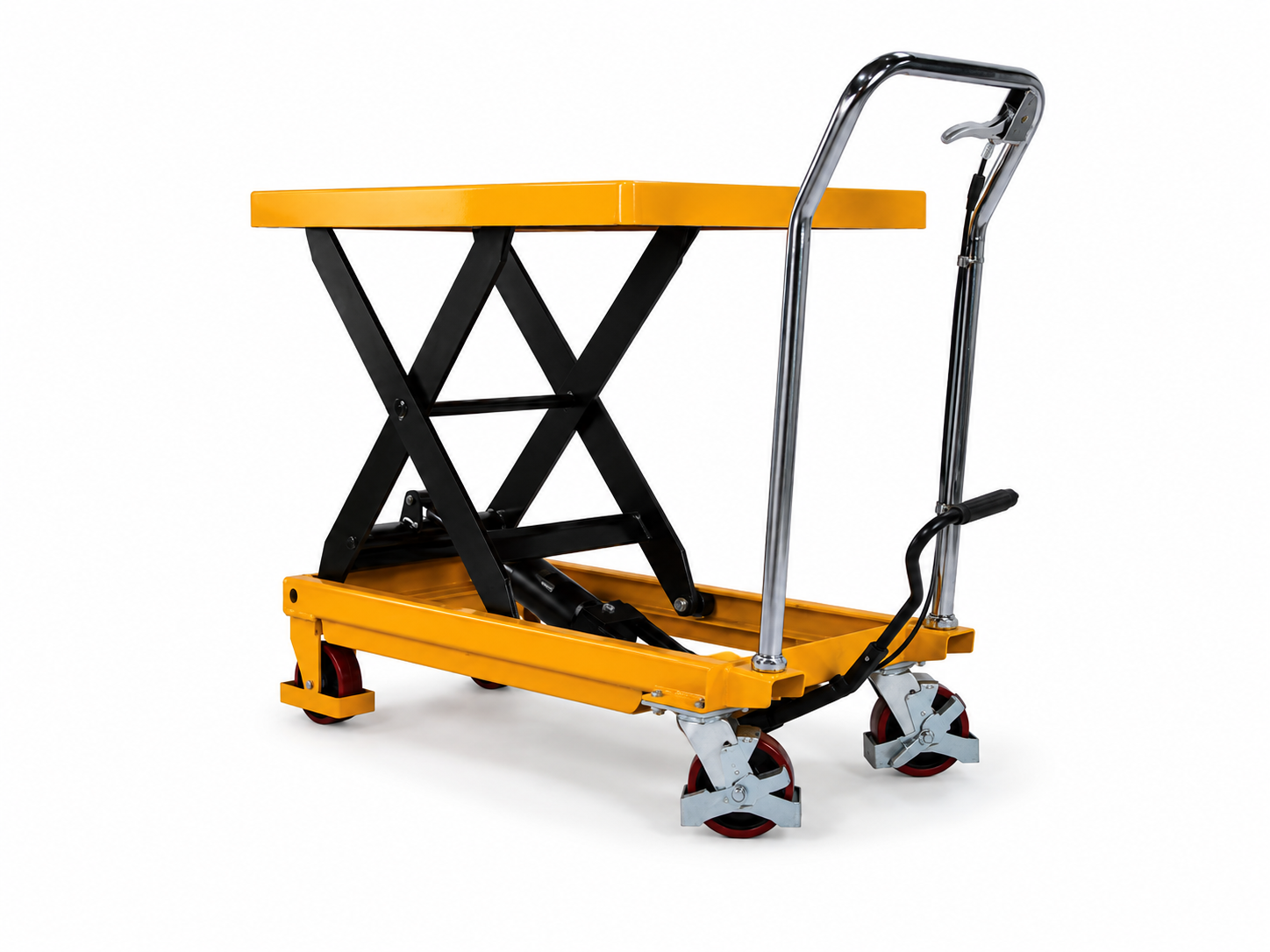

TF Series Platform Cart

Manual Lift & Transport

This series of scissor lift tables meets most industrial requirements with a robust structure and high-quality hydraulic cylinders.

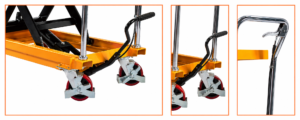

It has a long service life, overload pressure relief valve, high load PU wheels, two universal wheels and two fixed wheels. All wheels are equipped with foot protection devices.

Equipped with a pull wire handle for lowering and a rotary infinitely adjustable handle. Chrome-plated handle can be folded and stored.
Suitable for placement in truck beds or vehicle trunks.

TF series manual platform carts are suitable for material lifting, handling and height adjustment in warehouses, workshops and truck loading areas.

TF15

Rated Load150 kg

Min Height220 mm

Max Height720 mm

Platform Size700×450×36 mm

Wheel SizeØ100×25 mm

Pump Times≤21

Weight46 kg

Handle Height950 mm

TF30

Rated Load300 kg

Min Height285 mm

Max Height800 mm

Platform Size815×500 mm

Wheel SizeØ125×40 mm

Pump Times≤27

Weight77 kg

Handle Height990 mm

TF50

Rated Load500 kg

Min Height285 mm

Max Height880 mm

Platform Size815×500 mm

Wheel SizeØ125×40 mm

Pump Times≤27

Weight81 kg

Handle Height990 mm

TF75

Rated Load750 kg

Min Height420 mm

Max Height1000 mm

Platform Size1000×510×55 mm

Wheel SizeØ147×50 mm

Pump Times≤45

Weight125 kg

Handle Height990 mm

TF100

Rated Load1000 kg

Min Height380 mm

Max Height990 mm

Platform Size1016×510×55 mm

Wheel SizeØ125×50 mm

Pump Times≤82

Weight140 kg

Handle Height980 mm

Note: The above parameters are standard reference values. Final configuration may vary according to product upgrades or custom requirements.
