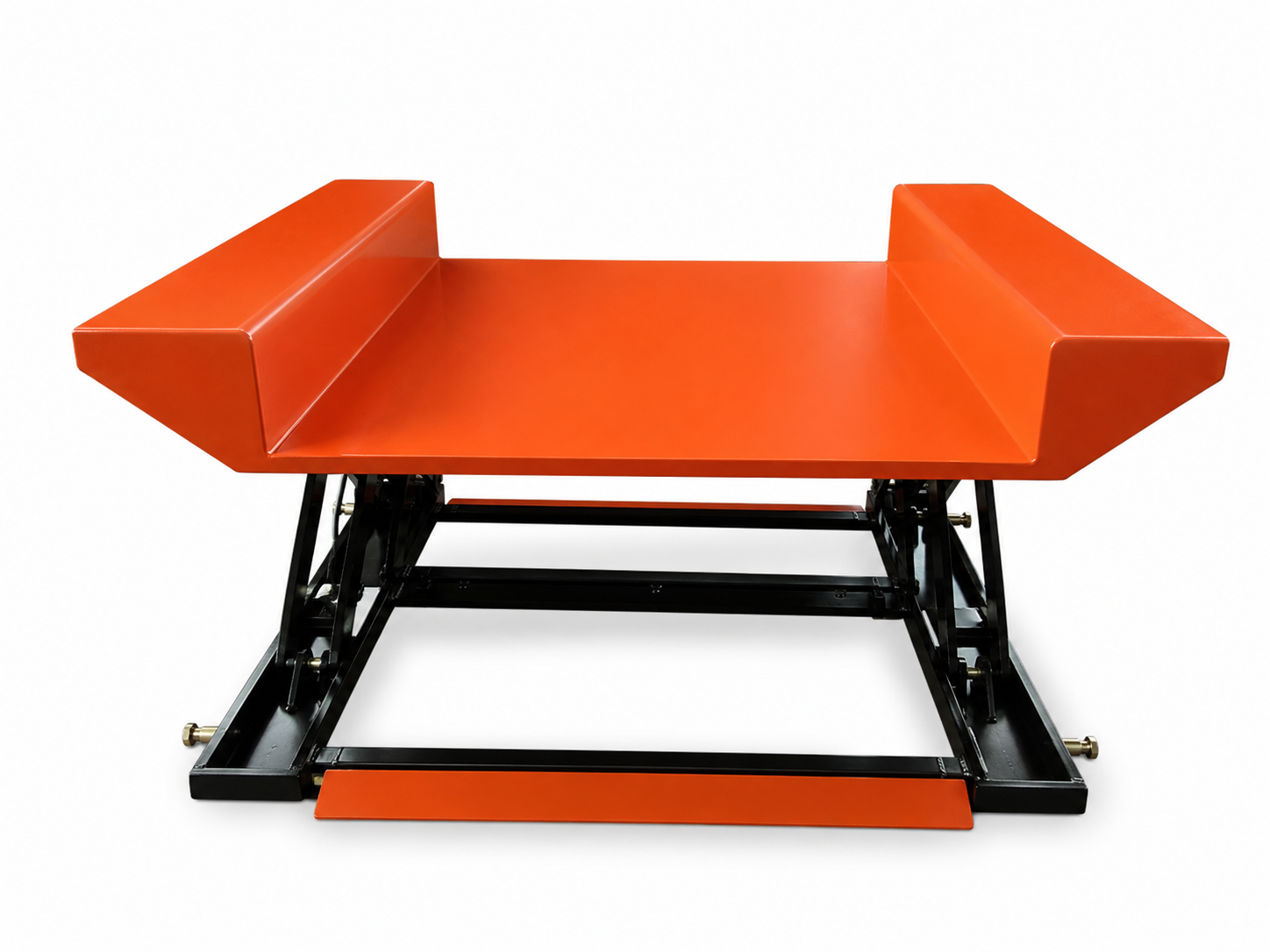

Ultra-Low Profile Electric Lift Platform Specifications
Ultra-low profile electric lift platform is designed for low-height pallet access, loading, unloading and height adjustment.
It features a closed height of only 35mm, front and rear ramp plates, anti-pinch scissor design, overload protection and stable electric lifting performance.
35mm Low Profile
Easy pallet access without pit installation
Ramp Plate Design
Front and rear bridge plates for easy loading
Anti-Pinch Scissor
Designed to help prevent pinch injury
Overload Protection
Safer and more reliable daily operation
| Item | Unit | HL1000 | HL1500 |
|---|---|---|---|
| Rated Load | kg | 1000 | 1500 |
| Max Height | mm | 810 | 810 |
| Min Height | mm | 35 | 35 |
| Platform Size | mm | 1270×1100 | 1270×1100 |
| Lifting Time | sec | 25–35 | 25–35 |
| Power Unit | V / kW | 380V/50Hz, AC 1.1kW | 380V/50Hz, AC 1.5kW |
| Weight | kg | 380 | 480 |
Note: The above parameters are standard reference values. Final configuration may vary according to product upgrades or custom requirements.
