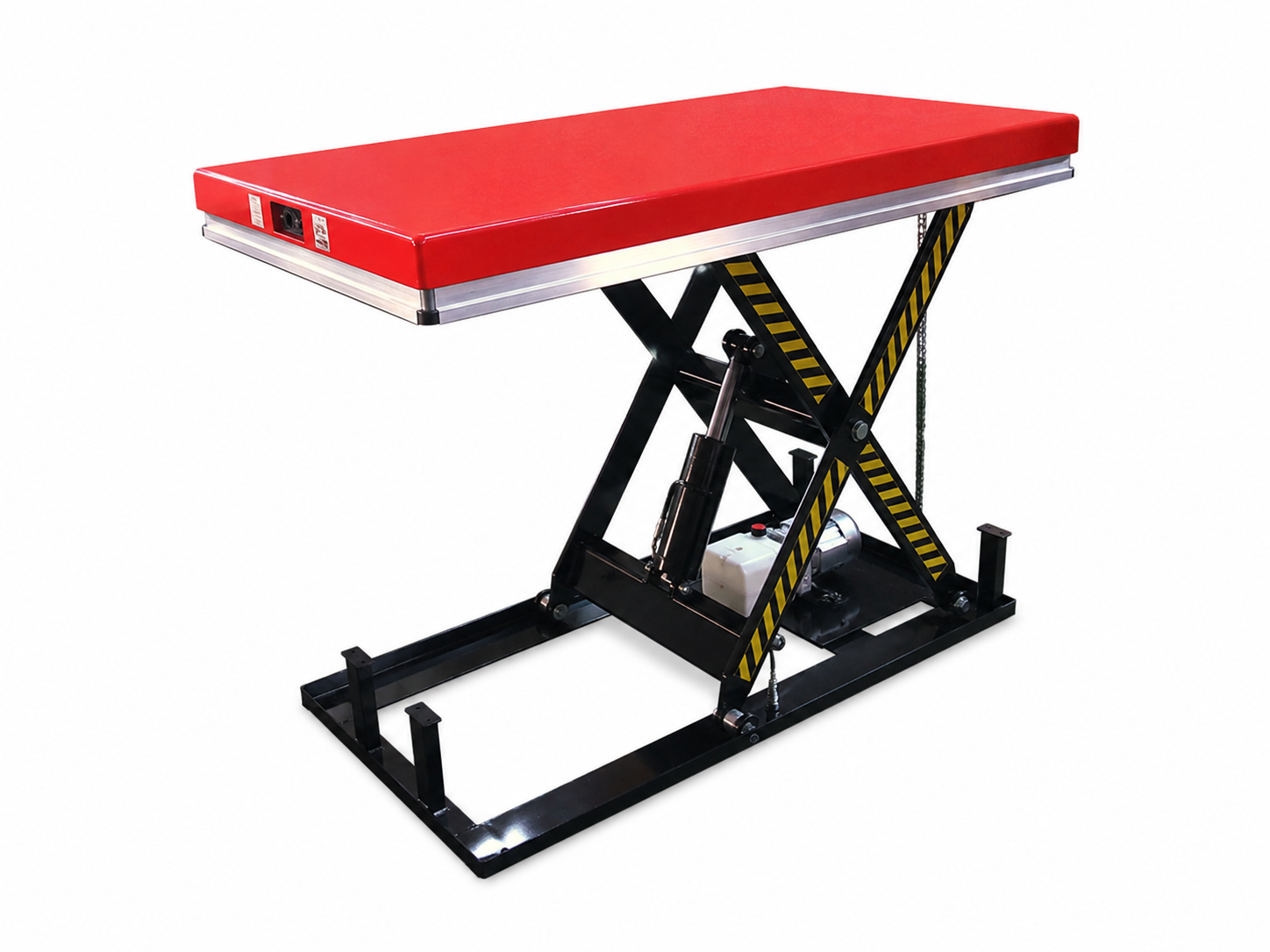

HW Series Electric Lift Platform Specifications
HW series electric lift platform is suitable for material lifting, loading assistance, production line height adjustment and workshop transfer applications.
| Item | Unit | HW500I | HW1000I | HW2000I | HW3000I |
|---|---|---|---|---|---|
| Rated Load | kg | 500 | 1000 | 2000 | 3000 |
| Min Height | mm | 190 | 190 | 190 | 220 |
| Max Height | mm | 1010 | 1010 | 1010 | 1010 |
| Platform Size | mm | 1300×800 | 1300×800 | 1300×800 | 1300×820 |
| Lifting Time | s | 15 | 25 | 40 | 26 |
| Lifting Speed Loaded | mm/s | 55 | 40 | 22 | 30 |
| Lowering Speed Loaded | mm/s | 40 | 35 | 33 | 40 |
| Power Unit | kW | 1.1 | 1.1 | 1.5 | 1.5 |
| Weight | kg | 160 | 220 | 280 | 320 |
Note: The above parameters are standard reference values. Final configuration may vary according to product upgrades or custom requirements.
