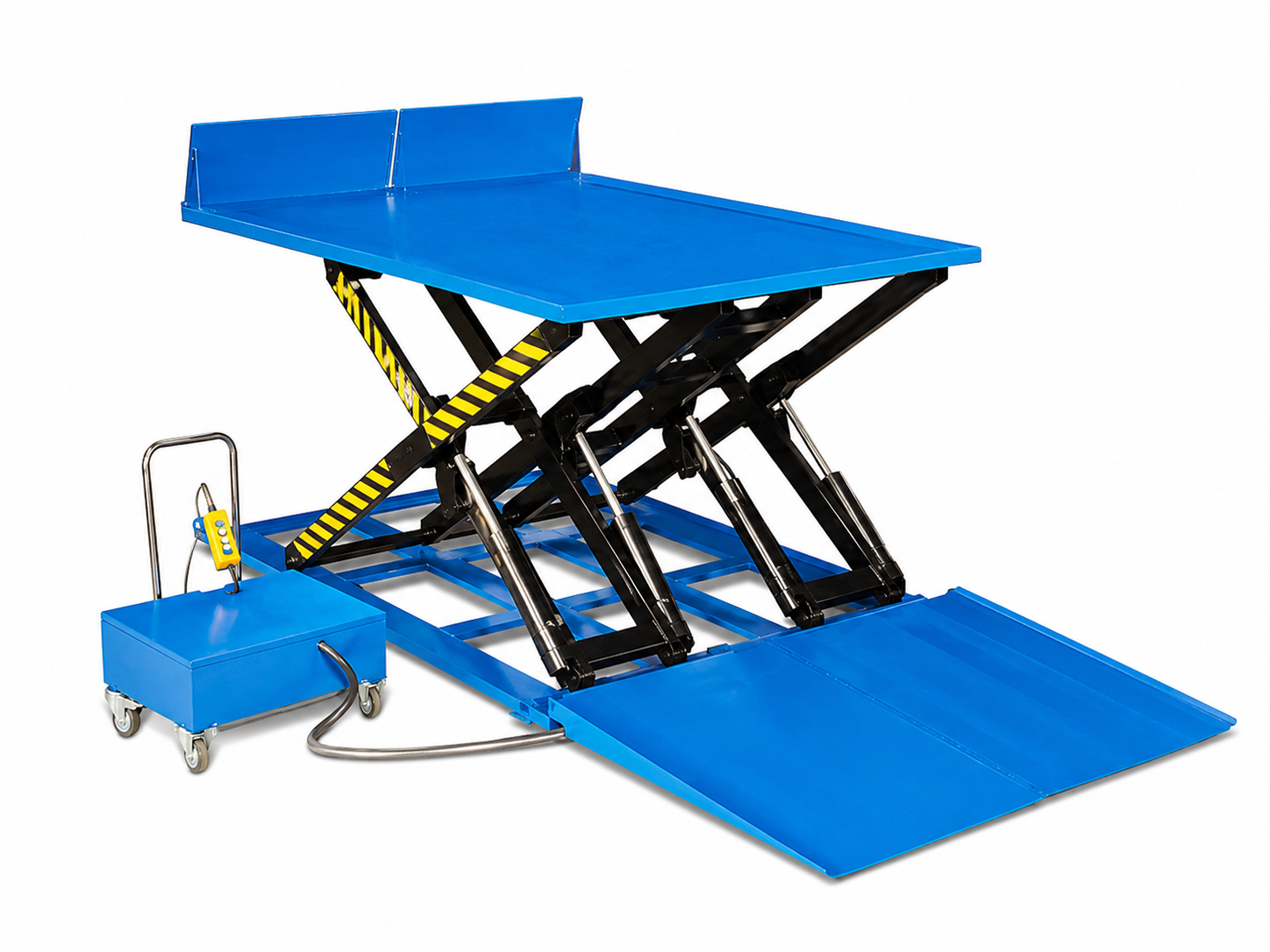

Truck Loading Electric Lift Platform Specifications
HW2500Y truck loading electric lift platform is suitable for truck loading, unloading, warehouse transfer and logistics material handling.
It provides stable lifting support between ground level and truck bed height, helping improve loading efficiency and reduce labor intensity.

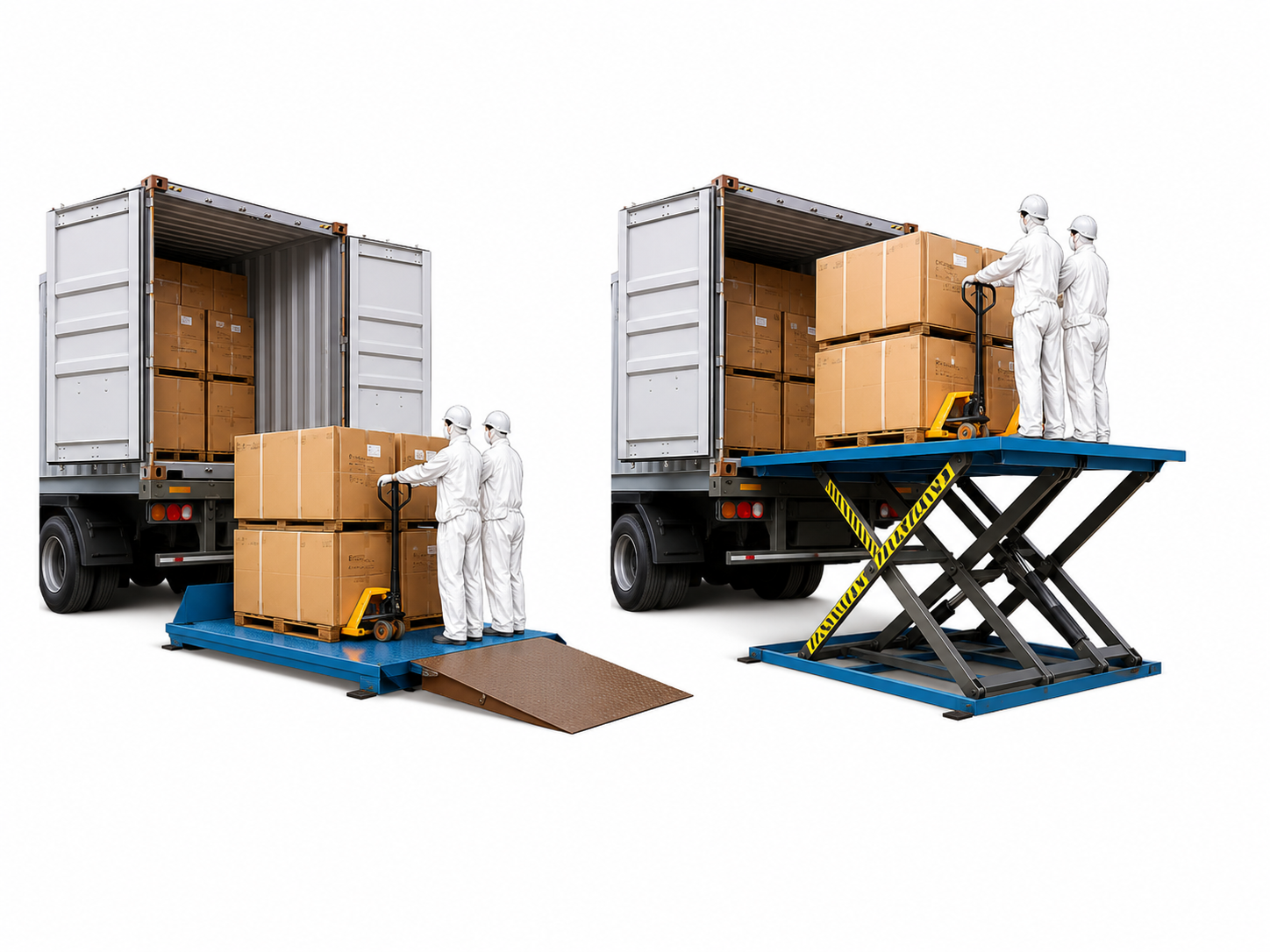

Truck Loading Design
Designed for cargo transfer between ground and truck bed
2500KG Rated Load
Suitable for heavy cargo loading and unloading
Large Platform Size
2000×2600mm platform for stable cargo placement
Electric Lifting System
Stable lifting for warehouse and logistics operation
| Item | Unit | HW2500Y |
|---|---|---|
| Rated Load | kg | 2500 |
| Lowered Height | mm | 130 |
| Lifting Height | mm | 1700 |
| Platform Size | mm | 2000×2600 |
| Lifting Time | sec | 60–70 |
| Power Supply | V / kW | 380V/50Hz, AC 2.2kW |
| Net Weight | kg | 1700 |
Note: The above parameters are standard reference values. Final configuration may vary according to product upgrades or custom requirements.
GET A FAST QUOTE
Need A Price For This Truck Loading Electric Lift Platform?
Send us your required load capacity, platform size, lifting height, truck bed height and working environment.
We will recommend a suitable model and provide a quotation quickly.
Load Capacity
Required cargo weight
Platform Size
Cargo length and width
Truck Bed Height
Required lifting height
Working Site
Warehouse, dock or logistics area
Request A Quote
Fill in the form below and we will reply with a suitable solution.
