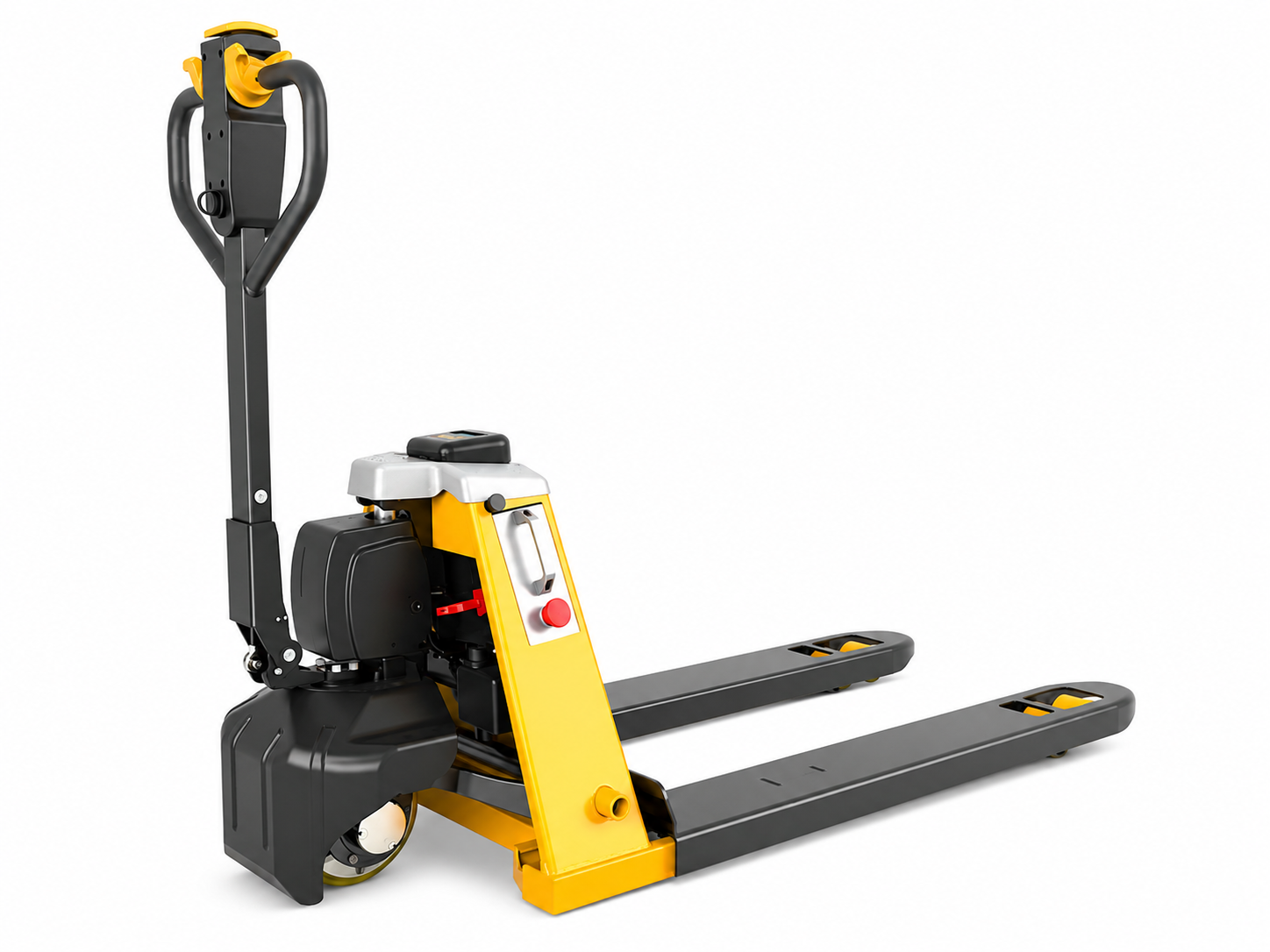

PSLC Series Electric Digital Pallet Truck
Electric digital pallet truck designed for efficient long-distance handling, accurate weighing and warehouse material transfer.
Suitable for logistics, factories, warehouses and high-frequency loading operations.
Basic Configuration
Power TypeElectric
Operation TypeWalkie Type
Load Center600 mm
Front Overhang950 mm
Wheelbase1250 mm
Dimensions
Lift Height190 mm
Lowered Height85±2 mm
Fork Length1150 mm
Fork Width540 / 680 mm
Overall Length1590 mm
Performance
Travel Speed3.5 km/h
Gradeability7 / 16%
Braking TypeElectric Brake
Turning Radius1487 mm
Axle Load380 / 520
Wheels & Chassis
Wheel MaterialPU
Drive Wheel210×75 mm
Load Wheel80×70 mm
Stabilizer Wheel80×30 mm
Single Fork Width165 mm
Note: The above parameters are standard reference values. Final configuration may vary according to product upgrades or custom requirements
