PALLETSLIFT SCALE PALLET TRUCK

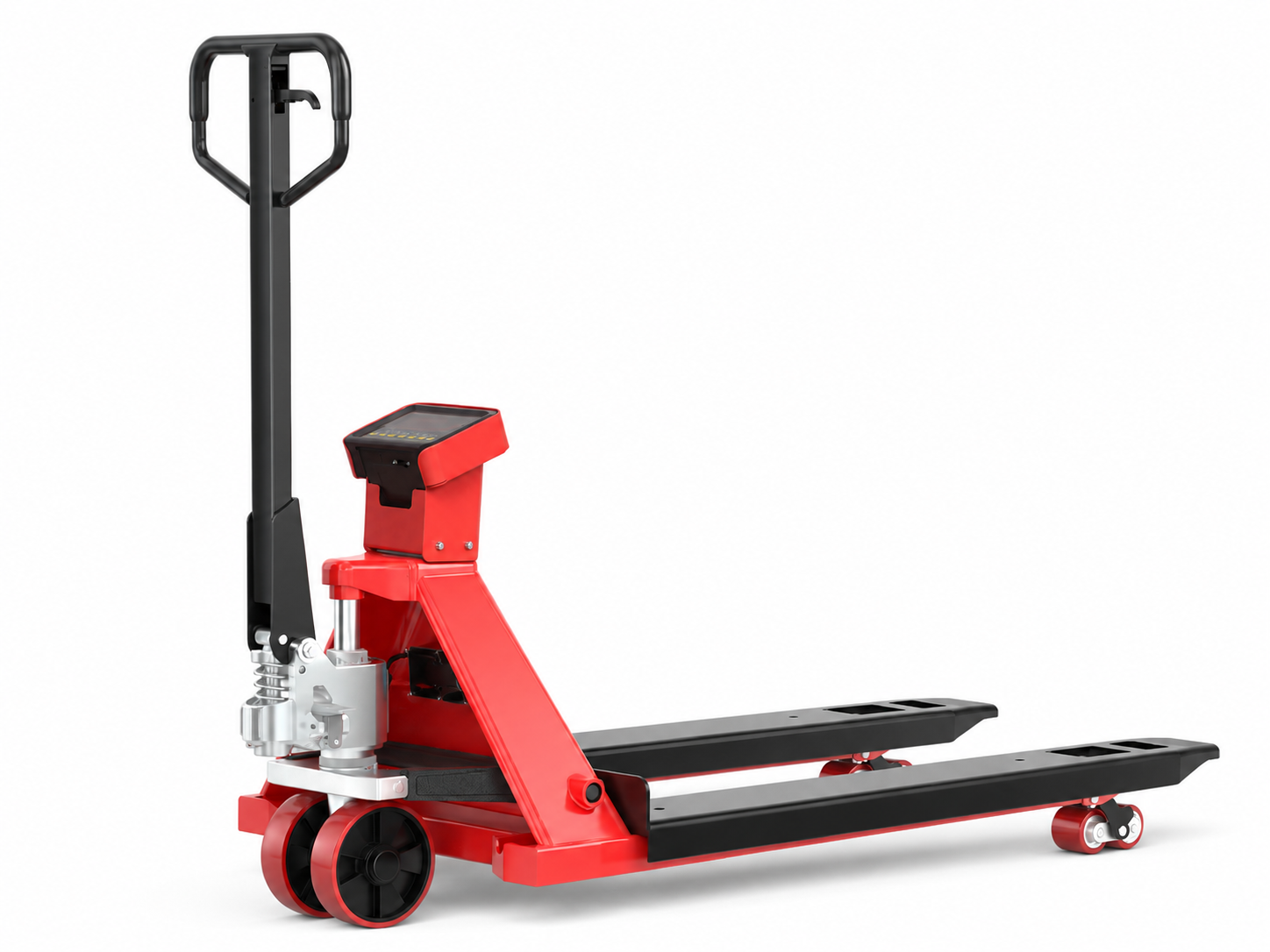

LCD Electronic Scale Pallet Truck
Pallet handling, accurate weighing and clear LCD display in one machine. Built for warehouse weighing, logistics handling, material checking and daily pallet transfer.
METER & DISPLAY
Multi-Function LCD Weighing Meter
The LCD weighing meter supports daily weighing operations such as tare, zero, counting, total accumulation and printing configuration. Operators can read and process weight data more conveniently.
- Clear LCD display
- Tare and zero functions
- Counting and accumulation support
- Optional printing configuration
PRECISION SENSOR
Built-In High-Precision Sensors
Four built-in sensors help provide stable and accurate weighing performance. Goods can be weighed directly during pallet handling, reducing repeated movement and improving work efficiency.
- Four-point sensor weighing
- Stable measurement performance
- Accuracy options available
- Efficient handling and weighing process
STRUCTURE & MATERIAL
Thickened Steel Frame For Stable Loading
The reinforced steel frame and fork structure provide strong support for daily heavy-duty handling. The body is designed for stable loading, durable use and reliable pallet movement.
- Thickened steel structure
- Stable fork support
- Strong load-bearing frame
- Designed for daily warehouse use
PRACTICAL DETAILS
Detailed Design For Daily Operation
Practical details such as waterproof display protection, sealed oil cylinder, extended charging cable and low fork design help make daily operation safer and more convenient.
- Waterproof display protection
- Sealed oil cylinder structure
- Extended charging cable
- Low fork height for easy pallet entry
WELDING & PROTECTION
Robot Welding And Bottom Sealing
Robot welding improves structural consistency, while bottom sealing helps protect wiring and electrical parts. These details support longer service life in warehouse and logistics environments.
- Robot welded body structure
- Bottom sealing protection
- Cleaner and stronger welding
- Improved durability for long-term use
CUSTOM SUPPORT
Source Factory Custom Support
Palletslift supports multiple scale pallet truck configurations and non-standard customization. Fork width, wheel type, meter configuration and printing options can be selected according to working needs.
- Factory direct supply
- Custom fork width available
- Wheel type options
- Configuration support for different applications
PACKING & DELIVERY
Separate Installation Saves Loading Space
The pallet truck can be packed and shipped efficiently with wooden pallet packaging. Separate installation helps save container space and makes bulk shipment more convenient.
- Wooden pallet packaging
- Space-saving shipment
- Bulk order support
- Convenient installation after delivery
WORKING APPLICATION
For Warehouse Weighing And Material Transfer
This scale pallet truck is widely used for warehouse weighing, cargo checking, logistics transfer, inventory management and daily pallet movement in different working environments.
- Warehouse weighing
- Logistics handling
- Inventory checking
- Material transfer operation
SELECTABLE PARAMETERS
LCD Electronic Scale Pallet Truck Specifications
Select the required rated load to view a matching reference configuration. Fork width, accuracy and printing options can also be confirmed before ordering.
| Item | Specification | Item | Specification |
|---|---|---|---|
| Rated Load | 1.5T / 1500KG | Weighing Accuracy | 0.1 / 0.2 / 0.5KG |
| Fork Width | 555 / 690MM | Fork Length | 1150MM |
| Lowered Height | 85MM | Raised Height | 195MM |
| Wheel Size | 80×70MM | Waterproof Performance | IP-65 |
| Battery Voltage | Lead-acid 6V | Battery Capacity | 6.0Ah |
| Product Function | Dynamic weighing, counting, zero, tare | Printing Method | Thermal printing / label printing |
| Accuracy Level | Class III | Package | 6 units / pallet |
| Item | Specification | Item | Specification |
|---|---|---|---|
| Rated Load | 2.0T / 2000KG | Weighing Accuracy | 0.1 / 0.2 / 0.5KG |
| Fork Width | 555 / 690MM | Fork Length | 1150MM |
| Lowered Height | 85MM | Raised Height | 195MM |
| Wheel Size | 80×70MM | Waterproof Performance | IP-65 |
| Battery Voltage | Lead-acid 6V | Battery Capacity | 6.0Ah |
| Product Function | Dynamic weighing, counting, zero, tare | Printing Method | Thermal printing / label printing |
| Accuracy Level | Class III | Package | 6 units / pallet |
| Item | Specification | Item | Specification |
|---|---|---|---|
| Rated Load | 2.5T / 2500KG | Weighing Accuracy | 0.1 / 0.2 / 0.5KG |
| Fork Width | 555 / 690MM | Fork Length | 1150MM |
| Lowered Height | 85MM | Raised Height | 195MM |
| Wheel Size | 80×70MM | Waterproof Performance | IP-65 |
| Battery Voltage | Lead-acid 6V | Battery Capacity | 6.0Ah |
| Product Function | Dynamic weighing, counting, zero, tare | Printing Method | Thermal printing / label printing |
| Accuracy Level | Class III | Package | 6 units / pallet |
| Item | Specification | Item | Specification |
|---|---|---|---|
| Rated Load | 3.0T / 3000KG | Weighing Accuracy | 0.1 / 0.2 / 0.5KG |
| Fork Width | 555 / 690MM | Fork Length | 1150MM |
| Lowered Height | 85MM | Raised Height | 195MM |
| Wheel Size | 80×70MM | Waterproof Performance | IP-65 |
| Battery Voltage | Lead-acid 6V | Battery Capacity | 6.0Ah |
| Product Function | Dynamic weighing, counting, zero, tare | Printing Method | Thermal printing / label printing |
| Accuracy Level | Class III | Package | 6 units / pallet |
Note: Parameters are standard reference values. Final configuration may vary according to selected capacity, fork width, wheel type and customization requirements.
